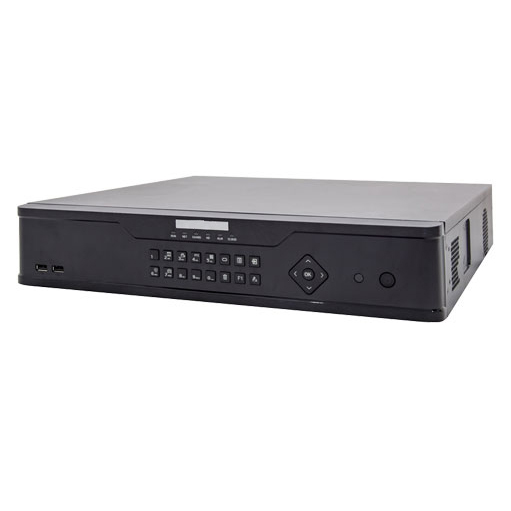

| 16/32/64 Channel 8 HDDs 4K NVR |
| NVR308-16E/32E/64E-B |
|
|
16/32/64-channel input
Up to 12 Megapixels resolution recording
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Support Ultra 265/H.265/H.264 video formats
8 SATA HDDs, Up to 10TB for each HDD
Dewarping support for fisheye cameras
|
|
|
|
|
|
Support Ultra H.265/H.265/H.264 video formats
16/32/64-channel input
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Support 2-ch HDMI, 1-ch VGA, 1-ch CVBS, HDMI2 at up to 4K(3840x2160) resolution
HDMI1/VGA and HDMI2 independent outputs provided
Up to 12 Megapixels resolution recording
Support RAID 0, 1, 5, 6, 10
8 SATA HDDs, Up to 10TB for each HDD
Various fisheye dewarping modes for live view and playback for both web interface and GUI
Support N+1 Hot spare
Support for 12V Power output
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
|
|
Model
|
NVR308-16E-B
|
NVR308-32E-B
|
NVR308-64E-B
|
|
Video/Audio Input
|
|
IP Video Input
|
16-ch
|
32-ch
|
64-ch
|
|
Two-way Audio Input
|
1-ch, RCA
|
|
Network
|
|
Incoming Bandwidth
|
320Mbps
|
|
Outgoing Bandwidth
|
320Mbps
|
|
Remote Users
|
128
|
|
Protocols
|
P2P, UPnP, NTP, DHCP, PPPoE
|
|
Video/Audio Output
|
|
HDMI/VGA Output
|
HDMI1/VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI2:
4K (3840x2160)/60Hz, 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
|
|
CVBS Output
|
1-ch, BNC
|
|
Recording Resolution
|
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
|
|
Audio Output
|
1-ch, RCA
|
|
Synchronous Playback
|
16-ch
|
|
Corridor Mode Screen
|
3/4/5/7/9/10/12/16
|
3/4/5/7/9/10/12/16/32
|
|
Decoding
|
|
Decoding format
|
Ultra 265, H.265, H.264
|
|
Live view/Playback
|
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
|
|
Capability
|
3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30
|
3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30, 32 x 960P@25
|
3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1
|
|
Hard Disk
|
|
SATA
|
8 SATA interfaces
|
|
Capacity
|
up to 10TB for each HDD
|
|
eSATA
|
1 eSATA interface
|
|
Disk Array
|
|
Array Type
|
RAID 0, 1, 5, 6, 10
|
|

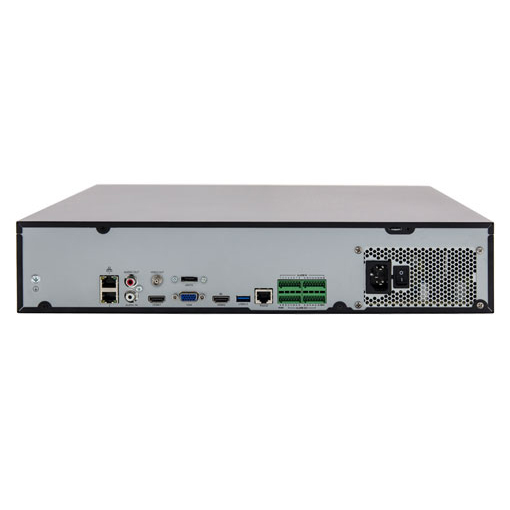

External Interface
|
|
Network Interface
|
2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
|
|
Serial Interface
|
1 x RS232, 1 x RS485
|
|
USB Interface
|
Front panel: 2 x USB2.0,Rear panel: 1 x USB3.0
|
|
Alarm In
|
16-ch
|
|
Alarm Out
|
4-ch
|
|
General
|
|
Power Supply
|
100~240 VAC
Power Consumption: ≤ 20 W (without HDD)
|
|
Working Environment
|
-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
|
|
Dimensions (W×D×H)
|
442mm ×425mm× 86mm (17.4" × 16.7"× 3.4")
|
|
Weight (without HDD)
|
≤ 5.13Kg (11.31lb)
|
|
|
|
|
|
| |
|
