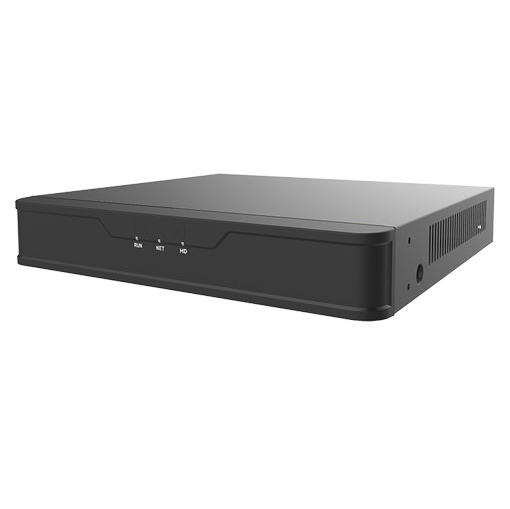

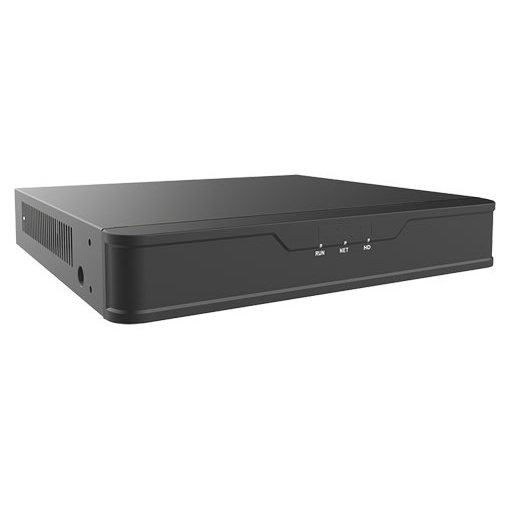

| 4-ch 1-SATA Ultra 265/H.265/H.264 NVR |
| NVR301-04E2-P4 |
|
|
Support Ultra 265/H.265/H.264 video formats
4-channel input
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
HDMI and VGA simultaneous output
Up to 4K resolution recording
|
|
|
|
|
|
Support Ultra 265/H.265/H.264 video formats
4-channel input
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
HDMI and VGA simultaneous output
Up to 4K resolution recording
1 SATA HDD up to 6TB
Support cloud upgrade
|
|
Model
|
NVR301-04E2-P4
|
|
Video/Audio Input
|
|
IP Video Input
|
4-ch
|
|
Two-way Audio Input
|
1-ch, RCA
|
|
Network
|
|
Incoming Bandwidth
|
80Mbps
|
|
Outgoing Bandwidth
|
64Mbps
|
|
Remote Users
|
128
|
|
Protocols
|
P2P, UPnP, NTP, DHCP, PPPoE
|
|
Video/Audio Output
|
|
HDMI/VGA Output
|
HDMI:
3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
|
|
Recording Resolution
|
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
|
|
Audio Output
|
1-ch, RCA
|
|
Synchronous Playback
|
4-ch
|
|
Corridor Mode Screen
|
3/4
|
|
Decoding
|
|
Decoding format
|
Ultra 265/H.265/H.264
|
|
Liveview/Playback
|
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
|
|
Capability
|
1 x 4K@30, 1 x 5MP@30, 2 x 4MP@30, 2 x 3MP@30, 4 x 1080P@30
|
|
Hard Disk
|
|
SATA
|
1 SATA interface
|
|
Capacity
|
up to 6TB for each disk
|
|
Smart
|
|
VCA Detection
|
Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Object Left Behind, Object Removed
|
|
VCA Search
|
Face search, Behavior search
|
|
Statistical Analysis
|
People counting
|
|
External Interface
|
|
Network Interface
|
1 RJ45 10M/100M self-adaptive Ethernet Interface
|
|
USB Interface
|
Rear panel: 1 x USB2.0, 1 x USB3.0
|
|
PoE
|
|
Interface
|
4 independent 100 Mbps PoE network interfaces
|
|
Max Power
|
Max 30W for single port
Max 54W in total (13.5W for each)
|
|
Supported Standard
|
IEEE 802.3at, IEEE 802.3af
|
|
General
|
|
Power Supply
|
48V DC
Power Consumption: ≤9 W (without HDD)
|
|
Working Environment
|
-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
|
|
Dimensions (W×D×H)
|
260mm × 240mm × 47mm (10.2"×9.4"×1.9 ")
|
|
Weight (without HDD)
|
1kg (2.20 lb)
|
|
|
|
|
|
| |
|
