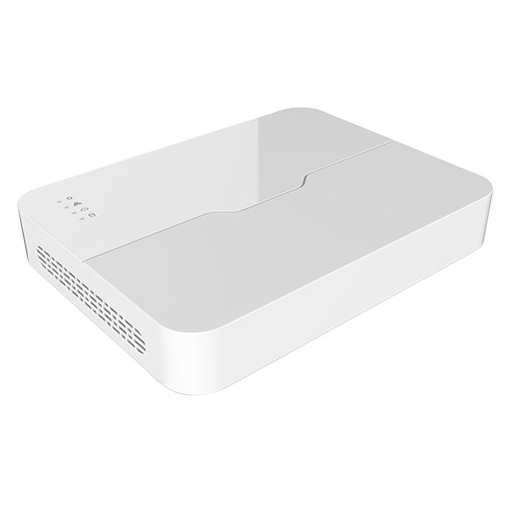

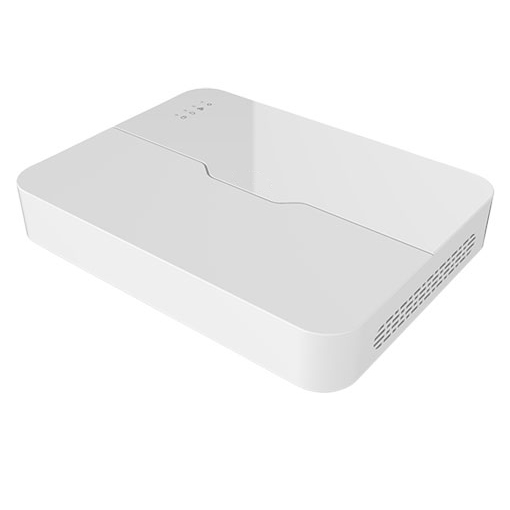

| 8-ch 1-SATA Ultra 265/H.265/H.264 NVR |
| NVR301-08LE2-P8 |
|
|
Support Ultra 265/H.265/H.264 video formats
8-channel input
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
HDMI and VGA simultaneous output
Up to 8MP resolution recording
|
|
|
|
|
|
Support Ultra 265/H.265/H.264 video formats
8-channel input
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
HDMI and VGA simultaneous output
Up to 8MP resolution recording
1 SATA HDD up to 6TB
Support cloud upgrade
|
|
Model
|
NVR301-08LE2-P8
|
|
Network
|
|
Incoming Bandwidth
|
80Mbps
|
|
Outgoing Bandwidth
|
64Mbps
|
|
Remote Users
|
128
|
|
Protocols
|
P2P, UPnP, NTP, DHCP, PPPoE
|
|
Decoding
|
|
Decoding format
|
Ultra 265/H.265/H.264
|
|
Liveview/Playback
|
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
|
|
Capability
|
1 x 4K@30, 1 x 5MP@30, 2 x 4MP@30, 2 x 3MP@30, 4 x 1080P@30, 8 x 720p@30
|
|
Smart
|
|
VCA Detection
|
Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Object Left Behind, Object Removed
|
|
VCA Search
|
Face search, Behavior search
|
|
Statistical Analysis
|
People counting
|
|
PoE
|
|
Interface
|
8 independent 100 Mbps PoE network interfaces
|
|
Max Power
|
Max 30W for single port
Max 108W in total (13.5W for each)
|
|
Supported Standard
|
IEEE 802.3at, IEEE 802.3af
|
|
|
|
Weight (without HDD)
|
≤0.8kg (1.76lb)
|
|
|
|
|
|
| |
|
