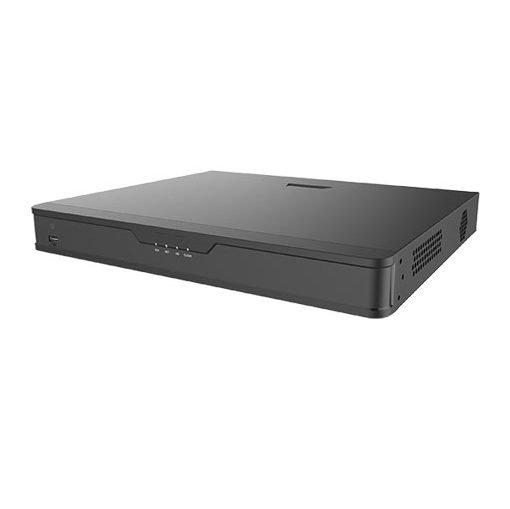

| 32 Channel 2 HDD NVR |
| NVR302-32S |
|
|
Support Ultra265/H.265/H.264 video formats
32-channel input
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
HDMI and VGA simultaneous output
Up to 8 Megapixels resolution recording
Accurate retrieval, instant playback
|
|
|
|
|
|
Support Ultra265/H.265/H.264 video formats
32-channel input
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
HDMI and VGA simultaneous output
Up to 8 Megapixels resolution recording
Accurate retrieval, instant playback
2 SATA HDDs, up to 6TB for each HDD
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
|
|
Model
|
NVR302-32S
|
|
Video/Audio Input
|
|
IP Video Input
|
32-ch
|
|
Two-way Audio Input
|
1-ch, RCA
|
|
Network
|
|
Incoming bandwidth
|
160Mbps
|
|
Outgoing bandwidth
|
64Mbps
|
|
Remote Users
|
128
|
|
Protocols
|
P2P, UPnP, NTP, DHCP, PPPoE
|
|
Video/Audio Output
|
|
HDMI/VGA Output
|
HDMI:
4K (3840x2160) @30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60
VGA:
1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1280x720@60, 1024x768@60
|
|
Audio Output
|
1-ch, RCA
|
|
Recording Resolution
|
8MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/2CIF/CIF
|
|
Synchronous Playback
|
32-ch
|
|
Corridor Mode Screen
|
3/4/5/7/9/10/12/16/32
|
|
Decoding
|
|
Decoding format
|
Ultra265/H.265/H.264
|
|
Live view/Playback
|
8MP/5MP/4MP/3MP/1080p/960p/960H/720p/D1/2CIF/CIF
|
|
Capability
|
2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080p@30, 16 x 720p@30,32 x D1
|
|
Hard Disk
|
|
SATA
|
2 SATA interfaces
|
|
Capacity
|
up to 6TB for each disk
|
|
Smart
|
|
VCA Detection
|
Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
|
|
VCA Search
|
Face search, Behavior search
|
|
Statistical Analysis
|
People counting
|
|
External Interface
|
|
Network Interface
|
2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interfaces
|
|
USB Interface
|
Rear panel: 1 x USB2.0, 1 x USB3.0 Front panel: 1 x USB2.0
|
|
General
|
|
Power Supply
|
12V DC
Power Consumption: ≤ 15W( without HDD )
|
|
Working Environment
|
-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
|
|
Dimensions (W×D×H)
|
380mm × 315mm ×53mm (15.0" × 12.4" ×2.1" )
|
|
Weight (without HDD)
|
≤ 2.48 Kg (5.47 lb)
|
|
|
|
|
|
| |
|
