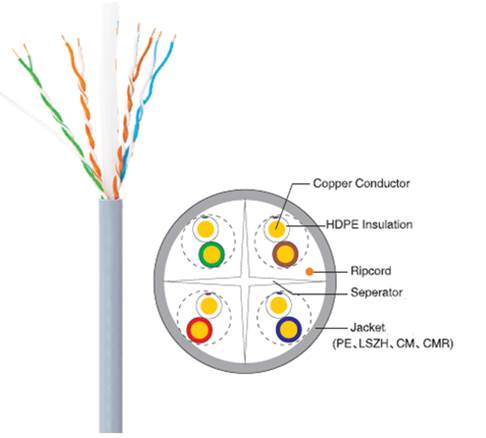

UTP Category 6 Cables
CAB-LC3100


Details
Content of Data Sheet
Product model CAB-LC3100
Product specification HSYV-6 4×2×0.57
Test Standard YD/T1019-2013
Conductor Material OFC(Oxygen free copper)
AWG 23
Nom.O.D.(mm) 0.57±0.005 mm
DC resistance ≤95 Ω/km
Insulation Material HDPE
Thickness 0.2±0.02 mm
Diameter 1.02±0.05 mm
Color Blue/White- Blue Green/White-Green
Electrical Characteristics:
Frequency Characteristic impedance RL ATT NEXT
MHz ohm ≥dB/100m ≤dB/100m ≥dB/100m
1 100±15 20.0 2.0 74.3
4 100±15 23.0 3.8 65.3
10 100±15 25.0 6.0 59.3
16 100±15 25.0 7.6 56.2
20 100±15 25.0 8.5 54.8
31.25 100±15 23.6 10.7 51.9
62.5 100±15 21.5 15.4 47.4
100 100±15 20.1 19.8 44.3
155 100±15 18.9 24.7 41.7
200 100±15 18.0 29.0 39.8
250 100±15 17.3 32.8 38.3

Frequency FEXT PS NEXT PS FEXT Phase delay
MHz ≥dB/100m ≥dB/100m ≥dB/100m ≤ns/100m
1 63.8 72.3 64.8 570.0
4 51.7 63.3 57.7 552.0
10 43.8 57.3 44.8 545.4
16 39.7 54.3 40.7 543.0
20 37.7 52.8 38.7 542.0
31.25 33.9 49.9 34.9 540.4
62.5 27.8 45.4 28.8 538.6
100 23.8 42.3 24.8 537.4
150 20.2 39.4 20.9 536.0
200 17.7 37.8 18.7 536.0
250 15.8 36.3 16.8 536.0
Orange
/White-Orange 		Brown/White-Brown
Pitch Offset pitch ≤20 mm
Cable pitch ≤120 mm
Sheath Material PVC(complies RoHS/REAC)
External O.D. 6.2±0.3 mm
Color Blue(RAL5015)
Tensile strength >13.5 Mpa
Thickness 0.6±0.05 mm
Surface Printing Letter height 3.0±0.3 mm
Color Black
Print error & Space 1±0.005 m
Case number Yes
Packing Packing Carton
Once packing dimension 420mm*205mm*420mm
Twice packing dimension 450mm*440mm*445mm
Twice packing quantity 2 cases
Packing length 305±1m
Rip-cord Yes Crossing backbone Yes
Ambient temperature -20℃～60℃
