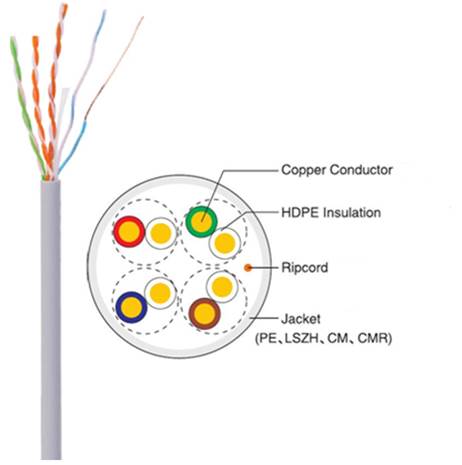

UTP Category 5E Cables(0.45mm)
CAB-LC2100B-E-IN

Details
Content of Data Sheet
Product model CAB-LC2100B-E-IN
Product specification HSYV-5e 4×2×0.45
Test Standard ISO/IEC11801 、TIA-568-C.2、IEC61156-6
Conductor Material OFC(Oxygen free copper)
AWG 25
Nom.O.D.(mm) 0.45±0.005 mm
DC resistance ≤115 Ω/km
Insulation Material HDPE
Thickness 0.17±0.01 mm
Diameter 0.81±0.05 mm
Color Blue/White- Blue Green/White-Green
Orange
/White-Orange 		Brown/White-Brown
Pitch Offset pitch ≤25 mm
Cable pitch ≤140 mm
Sheath Material PVC(complies RoHS/REACH)
External O.D. 4.7±0.3 mm
Color Gray(RAL7046)
Tensile strength >13.5 Mpa
Thickness 0.55±0.05 mm
Surface Printing Letter height 3.0±0.3 mm
Color Black
Print error
& Space 		1±0.005 m
Case number Yes
Packing Packing Carton
Once packing dimension 340mm*220mm*340mm
Twice packing dimension 360mm*470mm*360mm
Twice packing quantity 2 cases
Packing length 305±1 m
Rip-cord Yes
Ambient temperature -20℃～60℃
