| 2MP 30x IR Network PTZ Dome Camera |
| IPC6222ER-X30(P)-B |
|
|
1/2.8" progressive scan CMOS
Up to 1920×1080 resolution,30fps
30x optical zoom (4.5~135mm)
Ultra 265,H.265,ONVIF
Smart IR, up to 150m IR distance
All-weather design
|
|
-B-1.jpg)

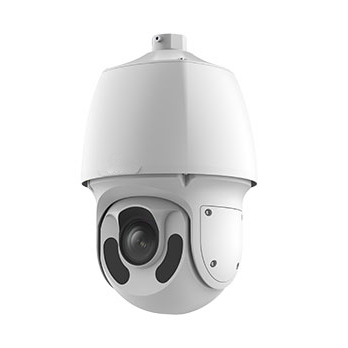

-B-2.jpg)
|
|
|
|
Optics
30X Optical Zoom
Accurate and fast focusing
Smart IR, up to 150m (492ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
120dB true WDR
Compression
Ultra 265, H.265, H.264, MJPEG
Triple streams
Customized OSD
Network
ONVIF Conformance
Structure
Innovative snow-removing functionality
More effective heat dissipation system
Intelligent temperature control technology
6KV surge protection designed for network interface
|
|
|
IPC6222ER-X30-B
|
IPC6222ER-X30P-B
|
|
Camera
|
|
Sensor
|
1/2.8", 2.0 megapixel, progressive scan, CMOS
|
|
Lens
|
4.5 ~ 135mm, AF automatic focusing and motorized zoom lens
|
|
Digital Zoom
|
16
|
|
Optical Zoom
|
30
|
|
DORI Distance
|
Lens (mm)
|
Detect (m)
|
Observe (m)
|
Recognize (m)
|
Identify (m)
|
|
4.5
|
69.8
|
27.9
|
14
|
7
|
|
135
|
2094.8
|
837.9
|
419
|
209.5
|
|
Angle of View (H)
|
56.7° ~ 2.28°
|
|
Angle of View (V)
|
31.89° ~ 1.28°
|
|
Angle of View (O)
|
69.74° ~ 2.69°
|
|
Shutter
|
Auto/Manual; shutter time: 1 ~ 1/100000s
|
|
Minimum Illumination
|
Colour: 0.001Lux (F1.5, AGC ON)
0Lux with IR
|
|
Iris
|
Auto/Manual; F1.5 ~ F4.0
|
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
|
Digital noise reduction
|
2D/3D DNR
|
|
S/N
|
>52dB
|
|
IR Range
|
Up to 150m (492ft)
|
|
Defog
|
Digital Defog
|
|
WDR
|
120dB
|
|
Video
|
|
Video Compression
|
Ultra 265, H.265, H.264, MJPEG
|
|
H.264 code profile
|
Baseline profile, Main Profile, High Profile
|
|
Frame Rate
|
Main Stream: 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
|
|
HLC
|
Supported
|
|
BLC
|
Supported
|
|
EIS
|
Supported
|
|
OSD
|
Up to 8 OSDs
|
|
Privacy Mask
|
Up to 24 areas
|
|
ROI
|
Up to 8 areas
|
|
Motion Detection
|
Up to 4 areas
|
|
Smart
|
|
General Function
|
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
|
|
Audio
|
|
Audio Compression
|
G.711
|
|
Two-way audio
|
Supported
|
|
Suppression
|
Supported
|
|
Sampling Rate
|
8KHZ
|
|
Storage
|
|
Edge Storage
|
Micro SD, up to 256GB
|
|
Network Storage
|
ANR
|
|
Network
|
|
Protocols
|
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
|
|
Compatible Integration
|
ONVIF (Profile S, Profile G, Profile T), API
|
|
Pan & Tilt
|
|
Pan Range
|
360° (endless)
|
|
Pan Speed
|
0.1°/s ~ 240°/s
|
|
Preset speed: 300°/s
|
|
Tilt Range
|
–15° ~ 90° (auto reverse)
|
|
Tilt Speed
|
0.1° ~ 160°/s
|
|
Preset speed: 240°/s
|
|
Number of Presets
|
1024
|
|
Patrol
|
Up to 16 patrols, up to 32 presets per patrol
Note: The total number of patrols and patterns is 16.
|
|
Home Position
|
Supported
|
|
Interface
|
|
Audio I/O
|
Audio cable
|
|
Input: impedance 35kΩ; amplitude 2V [p-p]
|
|
Output: impedance 600Ω; amplitude 2V [p-p]
|
|
Alarm I/O
|
1/1
|
|
Network
|
1RJ45 10M/100M Base-TX Ethernet
|
|
General
|
|
Power
|
AC 24V±25%, DC 24V±25%
|
AC 24V±25%, DC 24V±25%, PoE (PSE Required)
|
|
Power consumption: 60W
|
|
Dimensions (Ø x H)
|
Ø227 x 359.4mm (Ø8.9” x 14.2”)
|
|
Weight
|
5.28kg (11.6lb)
|
|
Working Environment
|
-40°C ~ 65°C (-40°F ~ 149°F), Humidity: ≤95% RH (non-condensing)
|
|
Ingress Protection
|
IP66
|
|
|
|
|
|
| |
|
