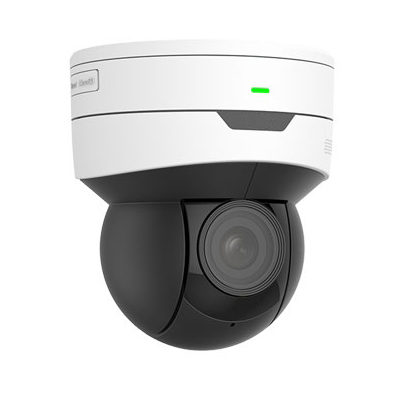

| 5MP WDR Starlight IR Network Indoor MiniPTZ Dome Camera |
| IPC6415SR-X5UPW |
|
|
1/2.7",progressive scan,CMOS
2592×1944 resolution,30fps
2.7~13.5mm，AF automatic focusing and motorized zoom lens
Ultra 265,H.265, H.264, MJPEG
Built-in microphone & speaker
Smart IR, up to 30m IR distance
|
|
|
|
|
|
Optics
Starlight illumination
Day/night functionality
Smart IR , up to 30 m (98 ft) IR distance
Up to 120 dB Optical WDR(Wide Dynamic Range)
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)
Compression
Ultra 265,H.265, H.264, MJPEG
Built-in microphone & speaker
Triple streams
ROI (Region of Interest)
Network
ONVIF Conformance
Structure
Support PoE power supply
Wide temperature range: -10°C to 50°C (14°F to 122°F)
Wide voltage range of ±25%
|
|
|
IPC6415SR-X5UPW
|
|
Camera
|
|
Sensor
|
1/2.7" progressive scan, 5.0 megapixel, CMOS
|
|
Lens
|
2.7~13.5mm，AF automatic focusing and motorized zoom lens
|
|
DORI Distance
|
Lens
|
Detect(m)
|
Observe(m)
|
Recognize(m)
|
Identify(m)
|
|
2.7mm
|
60.8
|
24.3
|
12.2
|
6.1
|
|
13.5mm
|
303.8
|
121.5
|
60.8
|
30.4
|
|
Angle of View (H)
|
27.9°~98.3°
|
|
Angle of View (V)
|
20.6°~70.3°
|
|
Angle of View (O)
|
30.0°~136.9°
|
|
Shutter
|
Auto/Manual, shutter time: 1 s ~ 1/100000 s
|
|
Minimum Illumination
|
Colour: 0.002 lux (F1.2,AGC ON)
0 lux with IR
|
|
Iris
|
F1.2
|
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
|
Digital noise reduction
|
2D/3D DNR
|
|
S/N
|
>55 dB
|
|
IR Range
|
UP to 30m (98ft)
|
|
WDR
|
120dB
|
|
Video
|
|
Video Compression
|
Ultra 265,H.265, H.264, MJPEG
|
|
H.264 code profile
|
Baseline profile, Main Profile, High Profile
|
|
Frame Rate
|
Main Stream:5M (2592*1944):Max. 30 fps;
Sub Stream: 720P (1280×720):Max. 30 fps;
Third Stream: D1 (720×576): Max. 30 fps
|
|
BLC
|
Supported
|
|
OSD
|
Up to 8 OSDs
|
|
Privacy Mask
|
Up to 24 areas
|
|
ROI
|
Up to 8 areas
|
|
Motion Detection
|
Up to 4 areas
|
|
Smart
|
|
General Function
|
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
|
|
Audio
|
|
Audio Compression
|
G.711
|
|
Suppression
|
Supported
|
|
Sampling Rate
|
8 KHZ
|
|
Storage
|
|
Edge Storage
|
Micro SD, up to 256 GB
|
|
Network Storage
|
ANR
|
|
Network
|
|
Protocols
|
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL
|
|
Compatible Integration
|
ONVIF(Profile S, Profile G), API
|
|
Pan & Tilt
|
|
Pan Range
|
350°
|
|
Pan Speed
|
0.1°/s ~ 60°/s
|
|
Preset speed: 60°/s
|
|
Tilt Range
|
0° ~ 90°
|
|
Tilt Speed
|
0.1° ~ 50°/s
|
|
Preset speed: 50°/s
|
|
Number of Presets
|
1024
|
|
Home Position
|
Supported
|
|
Interface
|
|
Alarm I/O
|
1/1
|
|
Serial Port
|
1 RS485
|
|
Network
|
1 RJ45 10M/100M Base-TX Ethernet
|
|
Built-in Mic
|
Supported
|
|
Built-in Speaker
|
Supported
|
|
WIFI
|
Supported
|
|
General
|
|
Power
|
DC 12V±25%, PoE (IEEE802.3 at)
|
|
Power consumption: Max 16W
|
|
Dimensions (Ø x H)
|
Φ129mm×143mm(Φ5.07” x5.63”)
|
|
Weight
|
0.75kg(1.65lb)
|
|
Working Environment
|
–10°C ~ +50°C (14°F ~ 122°F), Humidity:≤95% RH(non-condensing)
|
|
Reset Button
|
Supported
|
|
|
|
|
|
| |
|
