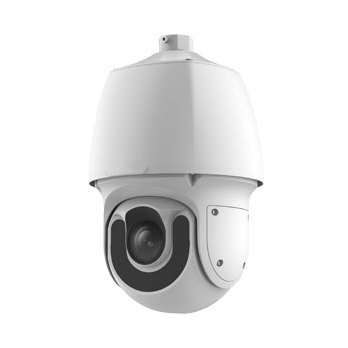

| 3MP 33x IR Network PTZ Dome Camera |
| IPC6253SR-X33 |
|
|
1/2.8" progressive scan CMOS
Up to 2048x1536 resolution,30fps
33x optical zoom (4.5~148.5mm)
Ultra 265,H.265,ONVIF
Smart IR, up to 200m IR distance
120dB True WDR
|
|
|
|
|
|
Optics
33x optical zoom
Accurate and fast focusing
Up to 120dB WDR (Wide Dynamic Range)
Smart IR, up to 200m (656ft) IR distance
IR anti-reflection window to increase the infrared transmittance
Compression
Ultra 265, H.265, H.264, MJPEG
Triple streams
Customized OSD
Network
ONVIF Conformance
Structure
15° Elevation Angle
Innovative snow-removing functionality
More effective heat dissipation system
Intelligent temperature control technology
6KV surge protection designed for network interface
|
|
|
IPC6253SR-X33
|
|
Camera
|
|
Sensor
|
1/2.8", 3.0 megapixel, progressive scan, CMOS
|
|
Lens
|
4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens
|
|
Digital Zoom
|
16
|
|
Optical Zoom
|
33
|
|
DORI Distance
|
Lens (mm)
|
Detect (m)
|
Observe (m)
|
Recognize (m)
|
Identify (m)
|
|
4.5
|
63.1
|
25.2
|
12.6
|
6.3
|
|
148.5
|
2081.8
|
832.7
|
416.4
|
208.2
|
|
Angle of View (H)
|
58.7° ~ 2.9°
|
|
Angle of View (V)
|
57.4° ~ 1.9°
|
|
Angle of View (O)
|
72.2° ~ 3.4°
|
|
Shutter
|
Auto/Manual; shutter time: 1 ~ 1/100000s
|
|
Minimum Illumination
|
Colour: 0.003Lux (F1.6,AGC ON)
0Lux with IR
|
|
Iris
|
Auto/Manual; F1.6 ~ F5.3
|
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
|
Digital noise reduction
|
2D/3D DNR
|
|
S/N
|
>55dB
|
|
IR Range
|
UP to 200m (656ft)
|
|
Defog
|
Digital Defog
|
|
WDR
|
120dB
|
|
Video
|
|
Video Compression
|
Ultra 265, H.265, H.264, MJPEG
|
|
H.264 code profile
|
Baseline profile, Main Profile, High Profile
|
|
Frame Rate
|
Main Stream: 3MP (2048*1536), Max 30fps; 1080P (1920*1080), Max 60fps;
Sub Stream: 2MP (1920*1080), Max 60fps;
Third Stream: D1 (720*576), Max 60fps
|
|
HLC
|
Supported
|
|
BLC
|
Supported
|
|
EIS
|
Supported
|
|
OSD
|
Up to 8 OSDs
|
|
Privacy Mask
|
Up to 24 areas
|
|
ROI
|
Up to 8 areas
|
|
Motion Detection
|
Up to 4 areas
|
|
Smart
|
|
General Function
|
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
|
|
Audio
|
|
Audio Compression
|
G.711
|
|
Two-way audio
|
Supported
|
|
Suppression
|
Supported
|
|
Sampling Rate
|
8KHZ
|
|
Storage
|
|
Edge Storage
|
Micro SD, up to 256GB
|
|
Network Storage
|
ANR
|
|
Network
|
|
Protocols
|
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
|
|
Compatible Integration
|
ONVIF (Profile S, Profile G, Profile T), API
|
|
Pan & Tilt
|
|
Pan Range
|
360° (endless)
|
|
Pan Speed
|
0.1°/s ~ 240°/s
|
|
Preset speed: 300°/s
|
|
Tilt Range
|
-15° ~ 90° (auto reverse)
|
|
Tilt Speed
|
0.1° ~ 160°/s
|
|
Preset speed: 240°/s
|
|
Number of Presets
|
1024
|
|
Patrol
|
Preset patrol, route patrol, recorded patrol
|
|
Home Position
|
Supported
|
|
Interface
|
|
Audio I/O
|
Audio cable
|
|
Input: impedance 35kΩ; amplitude 2V [p-p]
|
|
Output: impedance 600Ω; amplitude 2V [p-p]
|
|
Alarm I/O
|
2/1
|
|
Serial Port
|
1 RS485
|
|
Network
|
1 RJ45 10M/100M Base-TX Ethernet
|
|
Video Output
|
1 BNC, impedance 75Ω; amplitude 1V [p-p]
|
|
General
|
|
Power
|
AC 24V (Default)±25%, DC 24V±25%
|
|
Power consumption: 11 ~ 47W
|
|
Dimensions (Ø x H)
|
Ø227 x 359.4mm (Ø8.9” x 14.2”)
|
|
Weight
|
5.5kg (12.1lb)
|
|
Working Environment
|
-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
|
|
Ingress Protection
|
IP66
|
|
Reset Button
|
Supported
|
|
|
|
|
|
| |
|
