Optics
22X Optical Zoom
Fifth-generation infrared technology, more than 200m (656ft) IR distance
IR anti-reflection window to increase the infrared transmittance
Optical glass window with higher light transmittance
Smart IR
EIS (Electronic Image Stabilization)
Compression
8 Megapixel image
Ultra 265,H.265, H.264, MJPEG
Triple streams
Customized OSD
Network
ONVIF Conformance
Structure
Innovative snow-removing functionality
Intelligent temperature control technology
More effective heat dissipation system
IP66
|
|
Camera
|

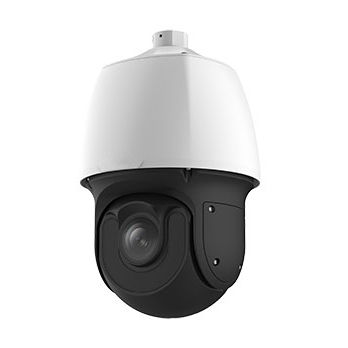

IPC6258SR-X22DUP
|
|
Sensor
|
1/1.8", progressive scan, 8megapixel, CMOS
|
|
Lens
|
6.5~ 143 mm (22x optical zoom) , AF automatic focusing and motorized zoom lens
|
|
DORI Distance
|
Lens
|
Detect(m)
|
Observe(m)
|
Recognize(m)
|
Identify(m)
|
|
6.5mm
|
146.3
|
58.5
|
29.3
|
14.6
|
|
143mm
|
3217.5
|
1287
|
643.5
|
321.8
|
|
Angle of View (H)
|
58.9°~3.4°
|
|
Angle of View (V)
|
35.2°~1.9°
|
|
Angle of View (O)
|
72.5°~4.1°
|
|
Shutter
|
Auto/Manual, shutter time: 1 ~ 1/100000 s
|
|
Minimum Illumination
|
Colour: 0.003 lux (F1.5,AGC ON)
0 lux with IR
|
|
Iris
|
Auto/Manual, F1.5 ~ F3.4
|
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
|
Digital noise reduction
|
2D/3D DNR
|
|
S/N
|
>55 dB
|
|
IR Range
|
UP to 200m (656ft)
|
|
Defog
|
Digital Defog
|
|
WDR
|
120dB
|
|
Video
|
|
Video Compression
|
Ultra 265,H.265, H.264, MJPEG
|
|
H.264 code profile
|
Baseline profile, Main Profile, High Profile
|
|
Frame Rate
|
Main Stream:8MP(3840 × 2160): Max.30fps, 2MP(1920×1080)@30fps；
Sub Stream:2MP(1920×1080) : Max. 25fps；
Third Stream: D1 (720×576): Max. 20fps
|
|
HLC
|
Supported
|
|
BLC
|
Supported
|
|
EIS
|
Supported
|
|
OSD
|
Up to 8 OSDs
|
|
Privacy Mask
|
Up to 24 areas
|
|
ROI
|
Up to 8 areas
|
|
Motion Detection
|
Up to 4 areas
|
|
Smart
|
|
General Function
|
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
|
|
Audio
|
|
Audio Compression
|
G.711
|
|
Two-way Audio
|
Supported
|
|
Suppression
|
Supported
|
|
Sampling Rate
|
8 KHZ
|
|
Storage
|
|
Edge Storage
|
Micro SD, up to 256 GB
|
|
Network Storage
|
ANR
|
|
Network
|
|
Protocols
|
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
|
|
Compatible Integration
|
ONVIF(Profile S, Profile G, Profile T),API
|
|
Pan & Tilt
|
|
Pan Range
|
360°
|
|
Pan Speed
|
0.1°/s ~ 74°/s
|
|
Preset speed: 300°/s
|
|
Tilt Range
|
–15° ~ +90° (auto reverse)
|
|
Tilt Speed
|
0.1° ~74°/s
|
|
Preset speed: 240°/s
|
|
Number of Presets
|
1024
|
|
Patrol
|
Preset patrol, route patrol, recorded patrol
|
|
Home Position
|
Supported
|
|
Interface
|
|
Audio I/O
|
Audio cable
|
|
1 Input: impedance 35 kΩ; amplitude 2 V [p-p]
|
|
1 Output: impedance 600 Ω; amplitude 2 V [p-p]
|
|
Alarm I/O
|
1 / 1
|
|
Network
|
1 RJ45 10M/100M Base-TX Ethernet
|
|
General
|
|
Power
|
24 V AC±25%, 24 V DC±25%, PoE(PSE Required)
|
|
Power consumption: 60W
|
|
Dimensions (Ø x H)
|
Ø227x359.4 mm (Ø8.9” x 14.2”)
|
|
Weight
|
5.55 kg (12.24 lb)
|
|
Working Environment
|
–40°C ~ +70°C (-40°F ~ 158°F), Humidity: ≤95% RH(non-condensing)
|
|
Ingress Protection
|
IP66
|
|
Reset Button
|
Supported
|
|
|
|
