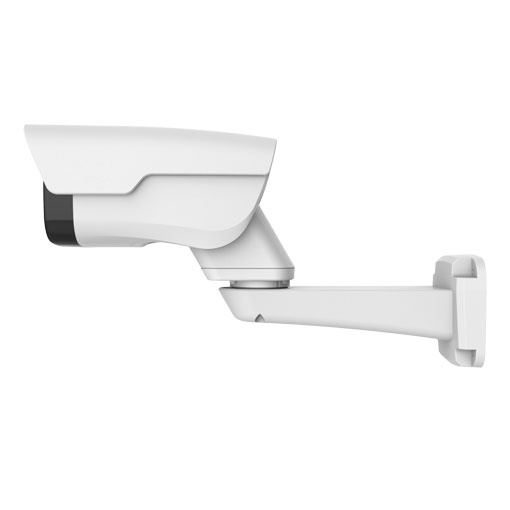

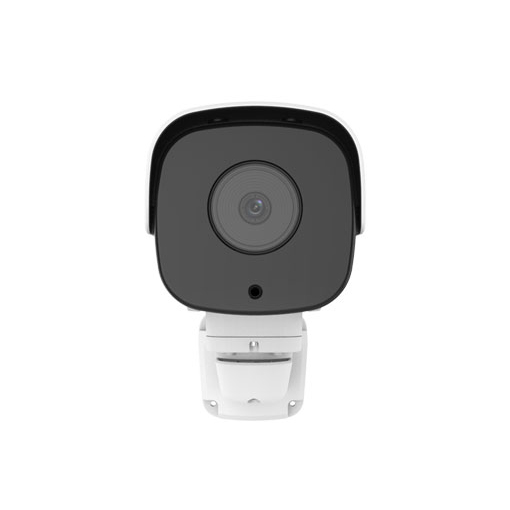

| 1080P Zoom Lens IR PTZ Camera |
| IPC742SR9-PZ30-32G |
|
|
1/2.8" progressive scan CMOS
Up to 2592×1520 resolution,20fps
3~6mm
Smart IR, up to 100m IR distance
2D/3D DNR, Corridor Mode, ROI
Ultra 265,H.265, ONVIF
|
|
|
|
|
|
PTZ
Precision motor with accuracy deviation less than 0.1 degree.
Pan range 250°, tilt range -50° ~ 50°
Pan speed up to 15°/s, tilt speed up to 5°/s
Optics
Smart IR, up to 100m (328ft) IR distance
2X Optical Zoom & Auto Focus
IR anti-reflection window to increase the infrared transmittance
Day/night functionality
Compression
Ultra 265, H.265, H.264, MJPEG
Triple streams
Customized OSD
Network
ONVIF Conformance
Structure
Support PoE power supply
Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
Wide voltage range of ±25%
IP66
|
|
|
IPC742SR9-PZ30-32G
|
|
Camera
|
|
Sensor
|
1/2.8", 2.0 megapixel, progressive scan, CMOS
|
|
Lens
|
3 ~ 6mm, AF automatic focusing and motorized zoom lens
|
|
Digital Zoom
|
16
|
|
Optical Zoom
|
2
|
|
DORI Distance
|
Lens (mm)
|
Detect (m)
|
Observe (m)
|
Recognize (m)
|
Identify (m)
|
|
3
|
67.5
|
27
|
13.5
|
6.8
|
|
6
|
135
|
54
|
27
|
13.5
|
|
Angle of view (H)
|
90.9° ~ 51.5°
|
|
Angle of View (V)
|
39.6° ~ 20.4°
|
|
Angle of View (O)
|
101.8° ~ 63.3°
|
|
Shutter
|
Auto/Manual, 1 ~ 1/100000s
|
|
Minimum Illumination
|
Color: 0.02Lux (F2.0, AGC ON)
0Lux with IR on
|
|
Iris
|
Auto/Manual, F2.0
|
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
|
S/N
|
>52dB
|
|
IR Range
|
Up to 100m (328ft) IR range
|
|
wavelength
|
850nm
|
|
IR On/Off Control
|
Auto/Manual
|
|
Defog
|
Digital Defog
|
|
WDR
|
DWDR
|
|
Video
|
|
Video Compression
|
Ultra 265, H.265, H.264, MJPEG
|
|
H.264 code profile
|
Baseline profile, Main Profile, High Profile
|
|
Frame Rate
|
Main Stream: 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
|
|
Video Bit Rate
|
128 Kbps~16 Mbps
|
|
OSD
|
Up to 8 OSDs
|
|
Privacy Mask
|
Up to 8 areas
|
|
ROI
|
Up to 8 areas
|
|
Motion Detection
|
Up to 4 areas
|
|
|
|
White Balance
|
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
|
|
Digital noise reduction
|
2D/3D DNR
|
|
Smart IR
|
Support
|
|
Flip
|
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
|
|
Dewarping
|
Support
|
|
HLC
|
Support
|
|
BLC
|
Support
|
|
Audio
|
|
Audio Compression
|
G.711
|
|
Two-way Audio
|
Supported
|
|
Suppression
|
Supported
|
|
Sampling Rate
|
8KHZ
|
|
Storage
|
|
Edge Storage
|
Built-in 32GB eMMC
|
|
Network Storage
|
ANR, NAS(NFS)
|
|
Network
|
|
Protocol
|
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
|
|
Compatibility
|
ONVIF (Profile S, Profile T), API
|
|
Client
|
EZStation
EZView
EZLive
|
|
Web Browser
|
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
|
|
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
|
|
Structure
|
|
Pan Range
|
250°
|
|
Pan Speed
|
0.1°/s ~ 15°/s
|
|
Preset speed: 15°/s
|
|
Tilt Range
|
-50° ~ 50°
|
|
Tilt Speed
|
0.1°/s ~ 5°/s
|
|
Preset speed: 5°/s
|
|
Number of Presets
|
400
|
|
Patrol
|
Up to 16 patrols, up to 32 presets per patrol
Note: The total number of patrols and patterns is 16.
|
|
Interface
|
|
Audio I/O
|
3.5mm connector
|
|
Input: impedance 35kΩ; amplitude 2V [p-p]
|
|
Output: impedance 600Ω; amplitude 2V [p-p]
|
|
Alarm I/O
|
2/1
|
|
Network
|
1 RJ45 10M/100M adaptive Ethernet
|
|
Certifications
|
|
Certifications
|
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
|
|
General
|
|
Power
|
DC 12V±25%, PoE (IEEE 802.3at)
|
|
Power consumption: Max 17.23W
|
|
Dimensions
|
357 × 106 × 194mm (14.1" × 4.2" × 7.7")
|
|
Net Weight
|
1.16kg (2.6lb)
|
|
Material
|
Metal + Plastic
|
|
Working Environment
|
-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
|
Strorage Environment
|
-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
|
surge protection
|
4KV
|
|
Ingress Protection
|
IP66
|
|
|
|
|
|
| |
|
