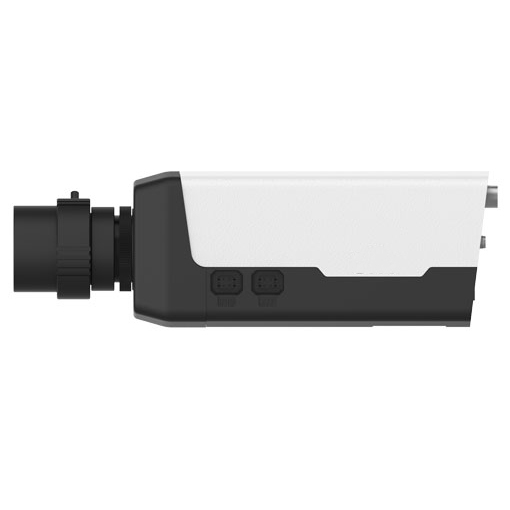

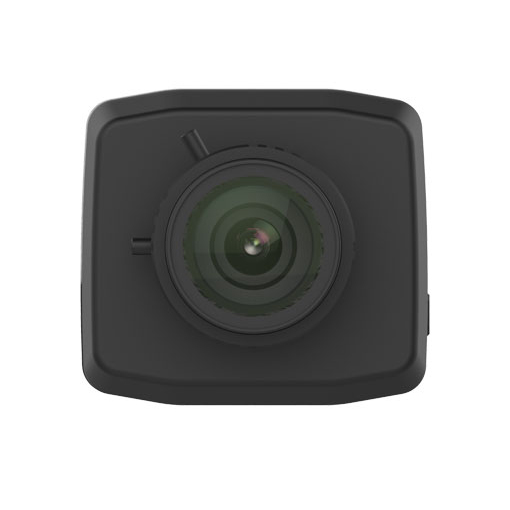

| 2MP WDR Network Box Camera |
| IPC542E-DLC-C |
|
| 1/2.8" progressive scan,CMOSUp to 1920x1080 resolution,30fpsAlarm I/O,Audio I/OUltra 265,H.265,ONVIF-20°C ~ +60°CAC24V,DC12V,PoE,6.8W Max |
|
|
|
|
|
Optics
Day/night functionality
Lowlight surveillance
2D/3D DNR (Digital Noise Reduction)
Up to 120 dB WDR(Wide Dynamic Range)
Compression
Triple streams
ROI (Region of Interest)
9:16 corridor mode
Customized OSD
Network
ONVIF Conformance
Structure
AC 24V /DC 12 V/PoE power supply
Wide temperature range: -20°C to 60°C (-4°F to 140°F)
Wide voltage range of ±10%
6 KV surge protection designed for network interface
|
|
|
IPC542E-DLC-C
|
|
Camera
|
|
Sensor
|
1/2.8", 2.0 megapixel, progressive scan, CMOS
|
|
Shutter
|
Auto/Manual, 1 ~ 1/100000s
|
|
Minimum Illumination
|
Colour: 0.0005Lux (F1.2, AGC ON)
B/W: 0.0001Lux(F1.2, AGC ON)
|
|
Lens Mount
|
C/CS
|
|
Iris
|
DC-Iris/P-Iris, DC 5V (4 Pins)
|
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
|
Digital noise reduction
|
2D/3D DNR
|
|
S/N
|
>52dB
|
|
Defog
|
Digital Defog
|
|
WDR
|
120dB
|
|
Video
|
|
Video Compression
|
Ultra 265, H.264, MJPEG
|
|
H.264 code profile
|
Baseline profile, Main Profile, High Profile
|
|
Frame Rate
|
Main Stream: 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
|
|
9:16 Corridor Mode
|
Supported
|
|
HLC
|
Supported
|
|
BLC
|
Supported
|
|
OSD
|
Up to 8 OSDs
|
|
Privacy Mask
|
Up to 8 areas
|
|
ROI
|
Up to 8 areas
|
|
Motion Detection
|
Up to 4 areas
|
|
Smart
|
|
General Function
|
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
|
|
Audio
|
|
Audio Compression
|
G.711
|
|
Two-way audio
|
Supported
|
|
Suppression
|
Supported
|
|
Sampling Rate
|
8KHZ
|
|
Storage
|
|
Edge Storage
|
Micro SD, up to 256GB
|
|
Network Storage
|
ANR
|
|
Network
|
|
Protocols
|
IPv4, IGMP,ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
|
|
Compatible Integration
|
ONVIF (Profile S, Profile G), API
|
|
Interface
|
|
Audio I/O
|
3.5mm audio interface
|
|
Input: impedance 35kΩ; amplitude 2V [p-p]
|
|
Output: impedance 600Ω; amplitude 2V [p-p]
|
|
Alarm I/O
|
2/1
|
|
Zoom/focus
|
N/A
|
|
Serial Port
|
1 RS485 (support Pelco-D/P)
|
|
Network
|
1 RJ45 10M/100M Base-TX Ethernet
|
|
Video Output
|
1 BNC, impedance 75Ω; amplitude 1V [p-p]
|
|
General
|
|
Power
|
AC 24V±10%, DC 12V±10%, PoE (IEEE 802.3af)
|
|
Power consumption: Max 6.8W
|
|
Dimensions (L × W × H)
|
151.5 x 71 x 65mm (6.0“ x 2.8“ x 2.6”) (excluding the lens)
|
|
Weight
|
0.48kg (1.1lb)
|
|
Working Environment
|
-20°C ~ 60°C (-4°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
|
Reset Button
|
Supported
|
|
|
|
|
|
| |
|
