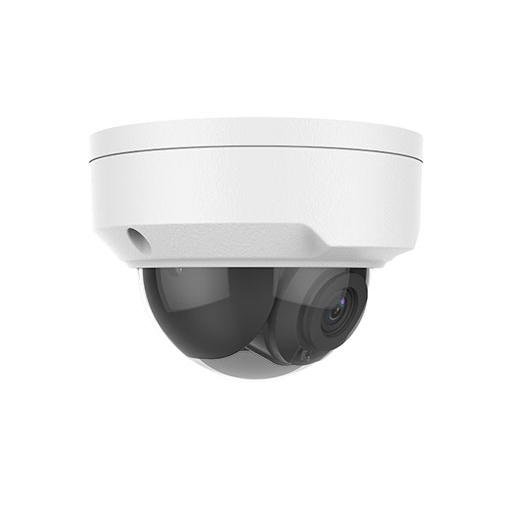

| 2MP Vandal-resistant Fixed Dome Network Camera |
| IPC322SR3-VSPF28(40)-C |
|
|
1/2.9",progressive scan,CMOS
Up to 1920×1080 resolution,30fps
2.8mm/4.0mm optional
Smart IR, up to 30m IR distance
2D/3D DNR, ROI,Corridor Mode
Ultra 265,H.265,ONVIF
|
|
-C-1.jpg)
-C-2.jpg)
|
|
|
|
Optics
Day/night functionality
Smart IR, up to 30m (98ft) IR distance
Car-grade LEDs, brighter and uniform light compensation
2D/3D DNR (Digital Noise Reduction)
Compression
Ultra 265, H.264, MJPEG
Triple streams
9:16 corridor mode
Network
ONVIF Conformance
Structure
Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
Wide input voltage range of ±25%
IP67
2-Axis
IK10
|
|
|
IPC322SR3-VSPF28-C
|
IPC322SR3-VSPF40-C
|
|
Camera
|
|
Sensor
|
1/2.9", 2.0 megapixel, progressive scan, CMOS
|
|
Lens
|
2.8mm@F2.0
|
4.0mm@F2.0
|
|
DORI Distance
|
Lens (mm)
|
Detect (m)
|
Observe (m)
|
Recognize (m)
|
Identify (m)
|
|
2.8
|
45
|
18
|
9
|
4.5
|
|
4.0
|
64.3
|
25.7
|
12.9
|
6.4
|
|
Angle of View (H)
|
109.9°
|
80.8°
|
|
Angle of View (V)
|
56.7°
|
41.4°
|
|
Angle of View (O)
|
142.9°
|
99.4°
|
|
Adjustment angle
|
Pan: 0° ~ 360°
|
Tilt: 0° ~ 75°
|
|
Shutter
|
Auto/Manual, 1 ~ 1/100000s
|
|
Minimum Illumination
|
Colour: 0.005Lux (F2.0, AGC ON)
0Lux with IR
|
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
|
Digital noise reduction
|
2D/3D DNR
|
|
S/N
|
>52dB
|
|
IR Range
|
Up to 30m (98ft) IR range
|
|
Defog
|
Digital Defog
|
|
WDR
|
DWDR
|
|
Video
|
|
Video Compression
|
Ultra 265, H.264, MJPEG
|
|
H.264 code profile
|
Baseline profile, Main Profile, High Profile
|
|
Frame Rate
|
Main Stream: 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
|
|
HLC
|
Supported
|
|
BLC
|
Supported
|
|
9:16 Corridor Mode
|
Supported
|
|
OSD
|
Up to 8 OSDs
|
|
Privacy Mask
|
Up to 8 areas
|
|
ROI
|
Up to 8 areas
|
|
Motion Detection
|
Up to 4 areas
|
|
Storage
|
|
Edge Storage
|
Micro SD, up to 256GB
|
|
Network Storage
|
ANR
|
|
Network
|
|
Protocols
|
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
|
|
Compatible Integration
|
ONVIF (Profile S, Profile G, Profile T), API
|
|
Interface
|
|
Network
|
1 RJ45 10M/100M Base-TX Ethernet
|
|
General
|
|
Power
|
DC 12V±25%, PoE (IEEE 802.3af)
|
|
Power consumption: Max 4W
|
|
Dimensions (Ø x H)
|
Φ108.5 x 81mm (Ø4.28” x 3.2”)
|
|
Weight
|
0.35kg (0.77lb)
|
|
Working Environment
|
-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
|
Ingress Protection
|
IP67
|
|
Vandal Resistant
|
IK10
|
|
|
|
|
|
| |
|
