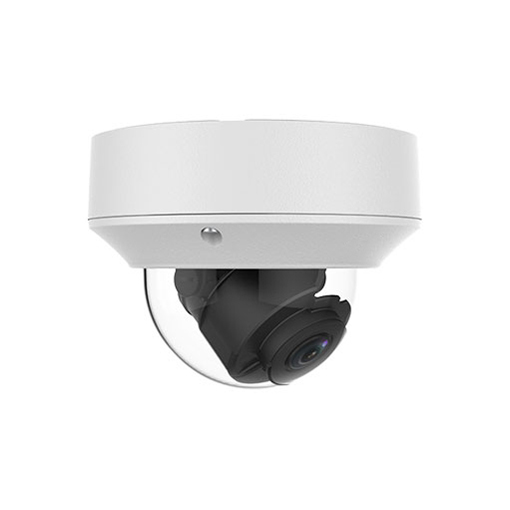

| 2MP WDR LightHunter VF Vandal-resistant IR Dome Network Camera |
| IPC3232ER3-DUVZ |
|
|
1/2.8",progressive scan,CMOS
Up to 1920×1080 resolution,30fps
2.8~12 mm
Smart IR, up to 30m IR distance
2D/3D DNR, ROI, 9:16 corridor mode, ONVIF
Ultra 265,H.265,ONVIF
|
|
|
|
|
|
Optics
Day/night functionality
SmartIR, up to 30 m (98 ft) IR distance
Up to 120 dB OpticalWDR(Wide Dynamic Range)
LightHunter
2D/3D DNR (Digital Noise Reduction)
Compression
Ultra 265,H.265, H.264, MJPEG
Triple streams
ROI (Region of Interest)
9:16 corridor mode
Network
ONVIF Conformance
Structure
Support PoE power supply
Built-in PoE splitter that outputs DC 12V
Wide temperature range: -40°C to 60°C (-40°F to 140°F)
Wide voltage range of ±25%
IK10 vandal resistant
IP67
3-Axis
|
|
|
IPC3232ER3-DUVZ
|
|
1/2.8", progressive scan ,2.0 megapixel, CMOS
|
|
Lens
|
2.8~12 mm@F1.4
|
|
DORI Distance
|
Lens
|
Detect(m)
|
Observe(m)
|
Recognize(m)
|
Identify(m)
|
|
2.8mm
|
41.9
|
16.8
|
8.4
|
4.2
|
|
12mm
|
209.5
|
83.8
|
41.9
|
20.9
|
|
Angle of View (H)
|
105°~33°
|
|
Angle of View (V)
|
58.4°~14.9°
|
|
Angle of View (O)
|
136.5°~40.6°
|
|
Adjustmentangle
|
Pan: 0°~360°
|
Tilt: 0°~80°
|
Rotate:0°~360°
|
|
Shutter
|
Auto/Manual, 1~1/100000 s
|
|
Minimum Illumination
|
Colour: 0.001 Lux (F1.4, AGC ON)
0Lux with IR
|
|
IR Range
|
Up to 30m (98 ft) IR range
|
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
|
wavelength
|
850nm
|
|
IR On/Off Control
|
Auto/Manual
|
|
S/N
|
>52dB
|
|
WDR
|
120dB
|
|
Ultra 265,H.265,H.264,MJPEG
|
|
H.264 code profile
|
Baseline profile, Main Profile, High Profile
|
|
Frame Rate
|
Main Stream:2MP (1920×1080): Max. 30 fps;
Sub Stream:2MP (1920×1080): Max. 30 fps;
Third Stream:D1 (720×576): Max. 30 fps
|
|
Video Bit Rate
|
128 Kbps~16 Mbps
|
|
9:16 Corridor Mode
|
Supported
|
|
OSD
|
Up to 8 OSDs
|
|
Privacy Mask
|
Up to 8 areas
|
|
ROI
|
Up to 8 areas
|
|
Motion Detection
|
Up to 4 areas
|
|
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
|
|
Digital noise reduction
|
2D/3D DNR
|
|
Smart IR
|
Support
|
|
Flip
|
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
|
|
Dewarping
|
Support
|
|
HLC
|
Support
|
|
BLC
|
Support
|
|
G.711
|
|
Two-way audio
|
Supported
|
|
Suppression
|
Supported
|
|
Sampling Rate
|
8 KHZ
|
|
Micro SD, up to 256 GB
|
|
Network Storage
|
ANR, NAS(NFS)
|
|
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
|
|
Compatible Integration
|
ONVIF(Profile S, Profile G, Profile T),API
|
|
Client
|
EZStation
EZView
EZLive
|
|
Web Browser
|
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
|
|
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
|
|
Audio I/O
|
Audio cable
|
|
Input: impedance 35 kΩ; amplitude 2 V [p-p]
|
|
Output: impedance 600 Ω; amplitude 2 V [p-p]
|
|
Alarm I/O
|
1/ 1
|
|
Network
|
1 RJ45 10M/100M Base-TX Ethernet
|
|
Video Output
|
1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
|
|
Power Output
|
DC12V Power Output With PoE
|
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
|
|
Power
|
DC12V±25%,PoE (IEEE802.3 af)
|
|
Power consumption: Max.7.2 W (PoE :Max.8.2 W)
|
|
Dimensions (Ø x H)
|
Φ148 x 111.3 mm (Ø5.8” x 4.4”)
|
|
Net Weight
|
0.92 kg (2.0 lb)
|
|
Material
|
Metal + Plastic
|
|
Working Environment
|
-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
|
Strorage Environment
|
-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
|
surge protection
|
6KV
|
|
Ingress Protection
|
IP67
|
|
Vandal Resistant
|
IK10
|
|
Reset Button
|
Supported
|
|
|
|
|
|
| |
|
