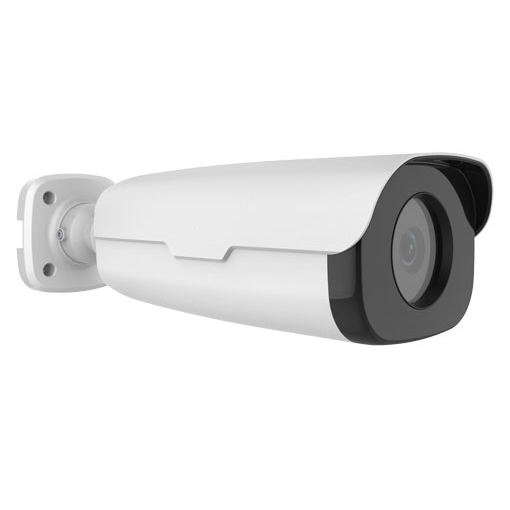

| 2MP 22x Starlight WDR Network IR Bullet Camera |
| IPC252ERA-X22DUP |
|
|
1/1.8" progressive scan CMOS
Up to 1920 x 1080 resolution, 60fps
6.5~143mm
22 x optical zoom
Smart IR, up to 200m IR distance
Ultra 265, H.265,
|
|
|
|
|
|
Optics
Starlight illumination
Accurate and fast focusing
Smart IR, up to 200m (656ft) IR distance
Up to 120dB WDR (Wide Dynamic Range)
Auto day/night functionality
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
Compression
Ultra 265, H.265, H.264, MJPEG
Triple Streams
ROI (Region of Interest)
9:16 corridor format
Customized OSD
Network
ONVIF Conformance
Structure
Wide temperature range: -40°C ~ 60°C (-40°F ~ 140°F)
Wide voltage range of ±25%
IP67
3-Axis
|
|
|
IPC252ERA-X22DUP
|
|
Camera
|
|
Sensor
|
1/1.8", 2.0 megapixel, progressive scan, CMOS
|
|
Lens
|
6.5 ~ 143mm, AF automatic focusing and motorized zoom lens
|
|
Optical Zoom
|
22
|
|
DORI Distance
|
Lens (mm)
|
Detect (m)
|
Observe (m)
|
Recognize (m)
|
Identify (m)
|
|
6.5
|
78
|
31.2
|
15.6
|
7.8
|
|
143
|
1716
|
686.4
|
343.2
|
171.6
|
|
Angle of view (H)
|
59° ~ 3°
|
|
Angle of View (V)
|
34.6° ~ 1.6°
|
|
Angle of View (O)
|
72.6° ~ 3.6°
|
|
Adjustment angle
|
Pan: 0° ~ 360°
|
Tilt: 0° ~ 90°
|
Rotate: 0° ~ 360°
|
|
Shutter
|
Auto/Manual, 1 ~ 1/100000s
|
Minimum
Illumination
|
Colour: 0.0005Lux (F1.5, AGC ON)
0Lux with IR
|
|
Iris
|
Auto/Manual, F1.5 ~ F3.4, DC-Iris
|
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
|
Digital noise reduction
|
2D/3D DNR
|
|
S/N
|
>52dB
|
|
IR Range
|
up to 200m (656ft) IR range
|
|
Defog
|
Digital Defog
|
|
WDR
|
120dB
|
|
Video
|
|
Video Compression
|
Ultra 265, H.265, H.264, MJPEG
|
|
H.264 code profile
|
Baseline profile, Main Profile, High Profile
|
|
Frame Rate
|
Main Stream: 2MP (1920*1080), Max 60fps;
Sub Stream: 2MP (1920*1080), Max 60fps;
Third Stream: D1 (720*576), Max 60fps
|
|
9:16 Corridor Mode
|
Supported
|
|
ROI
|
Supported
|
|
HLC
|
Supported
|
|
BLC
|
Supported
|
|
OSD
|
Up to 8 OSDs
|
|
Motion Detection
|
Up to 4 areas
|
|
Privacy Mask
|
Up to 8 areas
|
|
Smart
|
|
General Function
|
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
|
|
Audio
|
|
Audio Compression
|
G.711
|
|
Two-way audio
|
Supported
|
|
Suppression
|
Supported
|
|
Sampling Rate
|
8KHZ
|
|
Storage
|
|
Edge Storage
|
Micro SD, up to 256GB
|
|
Network Storage
|
ANR
|
|
Network
|
|
Protocols
|
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
|
|
Compatible Integration
|
ONVIF (Profile S, Profile G, Profile T), API
|
|
Interface
|
|
Audio I/O
|
Audio cable
|
|
1 Input: impedance 35kΩ; amplitude 2V [p-p]
|
|
1 Output: impedance 600Ω; amplitude 2V [p-p]
|
|
Alarm I/O
|
2/1
|
|
Serial Port
|
1 RS485
|
|
Network
|
1 RJ45 10M/100M Base-TX Ethernet
|
|
Video Output
|
1 BNC, impedance 75Ω; amplitude 1V [p-p]
|
|
General
|
|
Power
|
AC 24V±25%, -P: PoE (IEEE 802.3at)
|
|
Power consumption: Max 21W
|
|
Dimensions (L × W × H)
|
396.5 × 137 × 112mm (15.6” ×5.4” ×4.4”)
|
|
Weight
|
3.7kg (8.2lb)
|
|
Working Environment
|
-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
|
Ingress Protection
|
IP67
|
|
Reset Button
|
Supported
|
|
|
|
|
|
| |
|
