Optics
Day/night functionality
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
Smart IR, up to 30m (98ft) IR distance
2D/3D DNR (Digital Noise Reduction)
Compression
Ultra 265, H.265, H.264, MJPEG
Triple streams
Network
ONVIF Conformance
Structure
Support PoE power supply
Wide temperature range: -40°C ~ 60°C (-40°F ~ 140°F)
Wide voltage range of ±25%
IP67
3-Axis
|
|
|

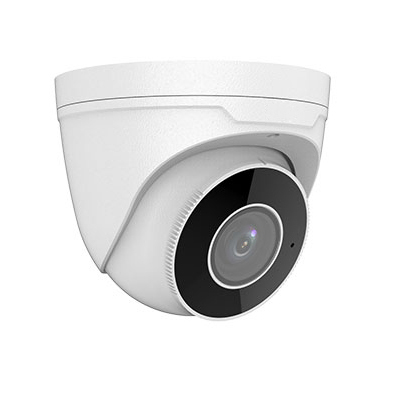

IPC3634SR3-ADPZ-F
|
|
Camera
|
|
Sensor
|
1/3", 4.0 megapixel, progressive scan, CMOS
|
|
Lens
|
2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
|
|
DORI Distance
|
Lens (mm)
|
Detect (m)
|
Observe (m)
|
Recognize (m)
|
Identify (m)
|
|
2.8
|
63.0
|
25.2
|
12.6
|
6.3
|
|
12
|
270.0
|
108.0
|
54.0
|
27.0
|
|
Angle of view (H)
|
98.26°~ 31.35°
|
|
Angle of View (V)
|
54.76°~ 18.55°
|
|
Angle of View (O)
|
127.74°~36.99°
|
|
Adjustment angle
|
Pan: 0° ~ 360°
|
Tilt: 0° ~ 90°
|
Rotate: 0° ~ 360°
|
|
Shutter
|
Auto/Manual, 1 ~ 1/100000s
|
|
Minimum Illumination
|
Colour: 0.003Lux (F1.6, AGC ON)
0Lux with IR
|
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
|
Digital noise reduction
|
2D/3D DNR
|
|
S/N
|
>56dB
|
|
IR Range
|
Up to 30m (98ft) IR range
|
|
Wavelength
|
850nm
|
|
IR On/Off Control
|
Auto/Manual
|
|
Defog
|
Digital Defog
|
|
WDR
|
120dB
|
|
Video
|
|
Video Compression
|
Ultra 265, H.265,H.264, MJPEG
|
|
H.264 code profile
|
Baseline profile, Main Profile
|
|
Frame Rate
|
Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps;1080P(1920*1080),Max30fps
Sub Stream: 4CIF (704*576), Max 30fps;
Third Stream: CIF (352*288), Max 30fps
|
|
Video Bit Rate
|
128 Kbps~16 Mbps
|
|
OSD
|
Up to 4 OSDs
|
|
Privacy Mask
|
Up to 4 areas
|
|
ROI
|
Up to 2 areas
|
|
Motion Detection
|
Up to 4 areas
|
|
|
|
White Balance
|
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
|
|
Digital noise reduction
|
2D/3D DNR
|
|
Smart IR
|
Support
|
|
Flip
|
Normal/Vertical/Horizontal/180°
|
|
Dewarping
|
NA
|
|
HLC
|
Supported
|
|
BLC
|
Supported
|
|
Audio
|
|
Audio Compression
|
G.711
|
|
Suppression
|
Supported
|
|
Sampling Rate
|
8KHZ
|
|
Storage
|
|
Edge Storage
|
Micro SD, up to 256GB
|
|
Network Storage
|
ANR
|
|
Network
|
|
Protocols
|
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
|
|
Compatible Integration
|
ONVIF (Profile S, Profile G, Profile T), API
|
|
Client
|
EZStation
EZView
EZLive
|
|
Web Browser
|
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
|
|
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
|
|
Interface
|
|
Built-in Mic
|
Supported
|
|
Network
|
1 RJ45 10M/100M Base-TX Ethernet
|
|
Certifications
|
|
Certifications
|
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
|
|
General
|
|
Power
|
DC 12V±25%, PoE (IEEE 802.3af)
|
|
Power consumption: Max 8.16W
|
|
Dimensions (Ø x H)
|
Φ129 x 110mm (Ø5.1” x 4.3”)
|
|
Net Weight
|
0.67kg (1.48lb)
|
|
Material
|
Metal
|
|
Working Environment
|
-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
|
Strorage Environment
|
-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
|
Surge Protection
|
6KV
|
|
Ingress Protection
|
IP67
|
|
Reset Button
|
Supported
|
|
|
|
