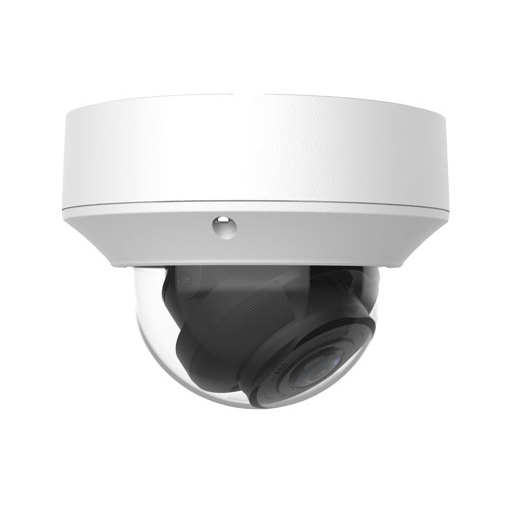

| 4MP LightHunter Deep Learning Vandal-resistant Dome Network Camera |
| IPC3234EA-HDZK |
|
|
1/1.8",progressive scan,CMOS
Up to 2688x1520 resolution,60fps
2.8~12mm Optical Zoom & Auto Focus
Smart IR, up to 40m IR distance
120dB True WDR
Ultra 265,H.265,ROI,ONVIF
|
|
|
|
|
|
Optics
1/1.8", Powered by lighthunter
SmartIR, up to 40m (131 ft) IR distance
Up to 120 dB Optical WDR (Wide Dynamic Range)
Compression
Ultra 265, H.265, H.264, MJPEG
Triple streams
2688*1520@60fps in the main stream
ROI (Region of Interest)
Network
ONVIF Conformance
Structure
DC12V or AC24V or PoE power supply
Wide voltage range of ±25% in AC, ±25% in DC
Micro SD, up to 256 GB
Alarm 1 in and 1 out, Audio 1 in and 1 out
IP67 ingress protection
IK10 vandal resistant
|
|
|
IPC3234EA-HDZK
|
|
Camera
|
|
|
Sensor
|
1/1.8", 4.0 megapixel, progressive scan, CMOS
|
|
Lens
|
2.8-12mm@F1.2, AF automatic focusing and motorized zoom lens
|
|
Iris
|
Auto aperture
|
|
DORI Distance
|
Lens (mm)
|
Detect (m)
|
Observe (m)
|
Recognize (m)
|
Identify (m)
|
|
2.8
|
63.0(206.6ft)
|
25.2(82.6ft)
|
12.6(41.3ft)
|
6.3(20.7ft)
|
|
12
|
270(885.6ft)
|
108(354.2ft)
|
54(177.1ft)
|
27(88.6ft)
|
|
Angle of View (H)
|
42.6°~113.7°
|
|
Angle of View (V)
|
24.1°~59°
|
|
Angle of View (O)
|
48.9°~128.1°
|
|
Shutter
|
Auto/Manual, 1 ~ 1/100000s
|
|
Adjustment angle
|
Pan: 0°~355°
|
Tilt: 0°~70°
|
Rotate: 0°~355
|
|
Min. Illumination
|
Colour:0.0005lux (F1.2, AGC ON)
0 lux with IR
|
|
WDR
|
120dB
|
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
|
S/N
|
>55dB
|
|
IR Range
|
Up to 40m (131 ft) IR range
|
|
Wavelength
|
850nm
|
|
IR On/Off Control
|
Auto/Manual
|
|
Defog
|
Digital Defog
|
|
Video
|
|
Video Compression
|
Ultra 265, H.265, H.264, MJPEG
|
|
Frame Rate
|
Main Stream: 4MP(2688*1520),Max 60fps; 4MP(2560*1440),Max 60fps; 2MP(1920*1080),Max 60fps;
Sub Stream: 2MP (1920*1080), Max 60fps;
Third Stream: D1 (720*576), Max 60fps
|
|
Video Bit Rate
|
128 Kbps~16 Mbps
|
|
ROI
|
Supported
|
|
Video stream
|
Triple streams
|
|
OSD
|
Up to 8 OSDs
|
|
Privacy Mask
|
Up to 8 areas (8 blacks / 4blacks+4mosaic)
|
|
|
|
White Balance
|
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
|
|
Digital noise reduction
|
2D/3D DNR
|
|
Smart IR
|
Support
|
|
Flip
|
Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
|
|
HLC
|
Support
|
|
BLC
|
Support
|
|
Smart
|
|
General Function
|
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
|
|
Audio
|
|
Audio Compression
|
G.711U,G.711A
|
|
Two way audio
|
Supported
|
|
Sampling Rate
|
8KHZ
|
|
Storage
|
|
Edge Storage
|
Micro SD, up to 256 GB
|
|
Network Storage
|
ANR,NAS(NFS)
|
|
Network
|
|
Protocols
|
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
|
|
Compatible Integration
|
ONVIF (Profile S, Profile G, Profile T), API
|
|
Client
|
EZStation
Ezview
EZLive
|
|
Web Browser
|
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
|
|
Interface
|
|
Audio I/O
|
Audio cable
|
|
1 Input: impedance 35kΩ; amplitude 2V [p-p]
|
|
1 output: impedance 600Ω; amplitude 2V [p-p]
|
|
Alarm I/O
|
1/1
|
|
Network
|
1 x RJ45 10M/100M/1000M Base-TX Ethernet
|
|
Certification
|
|
Certifications
|
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
|
|
General
|
Power
|
AC24V±25%, DC12V(±25%), PoE(IEEE 802.3af)
|
|
Power consumption: Max 8W
|
|
Support overcurrent protection , Input short circuit protection
|
|
Dimensions (Ø x H)
|
Φ148 x 111.3mm(Φ5.8" x 4.4")
|
|
Net Weight
|
1kg(2.2lb)
|
|
Material
|
Shield：PC
Bottom plate：metal
|
|
Working Environment
|
-40℃~60℃(-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
|
Storage Environment
|
-40℃~70℃(-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
|
|
Surge protection
|
6KV
|
|
Vandal Resistant
|
IK10
|
|
Ingress Protection
|
IP67
|
|
|
|
|
|
| |
|
