Optics
Day/night functionality
Up to 120dB WDR (Wide Dynamic Range)
Smart IR, up to 30m (98ft) IR distance
Compression
Ultra 265, H.264, MJPEG
Triple streams
Network
ONVIF Conformance
Structure
Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
Wide voltage range of ±25%
Micro SD, up to 128 GB
Built-in Mic
2KV surge protection designed for network interface
IP67
3-Axis
|
|
|

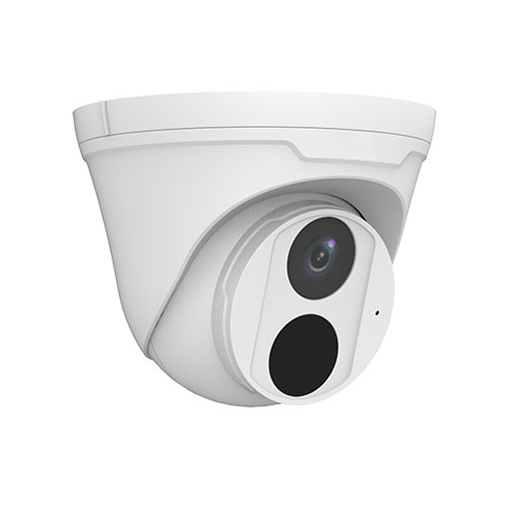

IPC3615SR3-DPF28M
|
IPC3615SR3-DPF40M
|
|
Camera
|
|
Sensor
|
1/2.7", 5.0 megapixel, progressive scan, CMOS
|
|
Lens
|
2.8mm@F2.0
|
4.0mm@F2.0
|
|
DORI Distance
|
Lens (mm)
|
Detect (m)
|
Observe (m)
|
Recognize (m)
|
Identify (m)
|
|
2.8
|
63.0
|
25.2
|
12.6
|
6.3
|
|
4.0
|
90.0
|
36.0
|
18.0
|
9.0
|
|
Angle of view(H)
|
105.6°
|
80.0°
|
|
Angle of View (V)
|
69.9°
|
52.2°
|
|
Angle of View (O)
|
137.3°
|
98.4°
|
|
Adjustment angle
|
Pan: 0° ~ 360°
|
Tilt: 0° ~ 80°
|
Rotate: 0° ~ 360°
|
|
Shutter
|
Auto/Manual, 1 ~ 1/100000s
|
|
Minimum Illumination
|
Colour: 0.01Lux (F2.0, AGC ON)
0Lux with IR on
|
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
|
Digital noise reduction
|
2D/3D DNR
|
|
S/N
|
>56dB
|
|
IR Range
|
Up to 30m (98ft) IR range
|
|
Wavelength
|
850nm
|
|
IR On/Off Control
|
Auto/Manual
|
|
Defog
|
Digital Defog
|
|
WDR
|
120dB
|
|
Video
|
|
Video Compression
|
Ultra 265, H.265, H.264, MJPEG
|
|
H.264 code profile
|
Baseline profile, Main Profile
|
|
Frame Rate
|
Main Stream: 5MP (2592*1944), Max 25fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 25fps;
Third Stream: 4CIF (704*576), Max 25fps
|
|
Video Bit Rate
|
128 Kbps~16 Mbps
|
|
OSD
|
Up to 4 OSDs
|
|
Privacy Mask
|
Up to 4 areas
|
|
ROI
|
Up to 4 areas
|
|
Motion Detection
|
Up to 4 areas
|
|
|
|
White Balance
|
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
|
|
Digital noise reduction
|
2D/3D DNR
|
|
Smart IR
|
Support
|
|
Flip
|
Normal/Vertical/Horizontal/180°
|
|
Dewarping
|
NA
|
|
HLC
|
Supported
|
|
BLC
|
Supported
|
|
Audio
|
|
Audio Compression
|
G.711
|
|
Suppression
|
Supported
|
|
Sampling Rate
|
8KHZ
|
|
Storage
|
|
Edge Storage
|
Micro SD, up to 128 GB
|
|
Network Storage
|
ANR
|
|
Network
|
|
Protocols
|
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
|
|
Compatible Integration
|
ONVIF (Profile S, Profile T), API
|
|
Client
|
EZStation
EZView
EZLive
|
|
Web Browser
|
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
|
|
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
|
|
Interface
|
|
Network
|
1 RJ45 10M/100M Base-TX Ethernet
|
|
Built-in Mic
|
Supported
|
|
Certifications
|
|
Certifications
|
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
|
|
General
|
|
Power
|
DC 12V±25%, PoE (IEEE 802.3af)
|
|
Power consumption: Max 5.5W
|
|
Dimensions (Ø x H)
|
Φ118 x 96mm (Φ4.6” x 3.8”)
|
|
Net Weight
|
0.33kg (0.73lb)
|
|
Material
|
Metal + Plastic
|
|
Operating Conditions
|
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
|
Strorage Environment
|
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
|
Surge Protection
|
2KV
|
|
Ingress Protection
|
IP67
|
|
|
|
