Optics
Day/night functionality
SmartIR, up to 30m (98ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)
Up to 120dB WDR (Wide Dynamic Range
Compression
Ultra 265,H.265, H.264, MJPEG
Triple streams
9:16 corridor format
Network
ONVIF Conformance
Structure
Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
Wide voltage range of ±25%
IP67
3-Axis
|
|
|

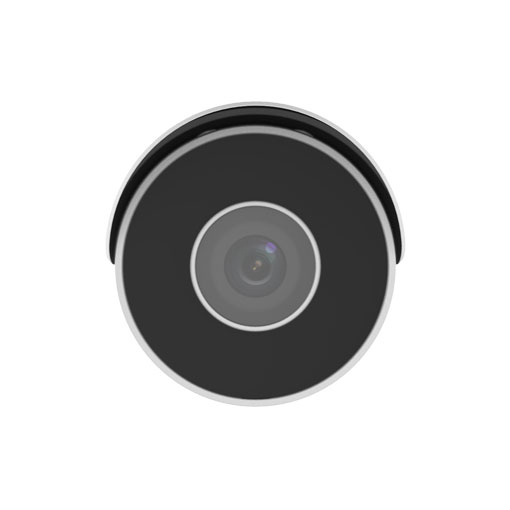

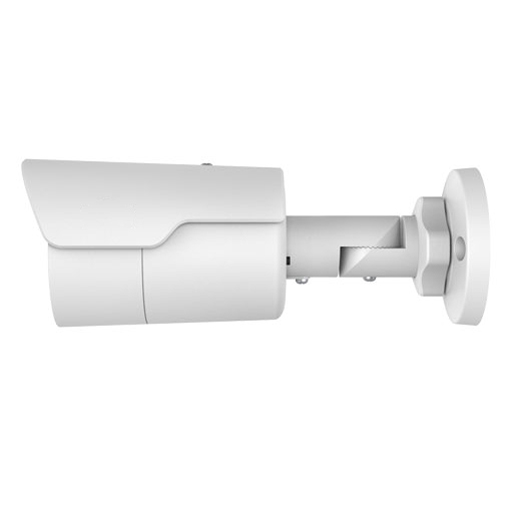

IPC2128SR3-DPF40
|
IPC2128SR3-DPF60
|
|
Camera
|
|
Sensor
|
1/2.5", 8.0 megapixel, progressive scan, CMOS
|
|
Lens
|
4.0mm@F2.0
|
6.0mm@F2.0
|
|
DORI Distance
|
Lens (mm)
|
Detect(m)
|
Observe(m)
|
Recognize(m)
|
Identify(m)
|
|
4.0
|
72
|
28.8
|
14.4
|
7.2
|
|
6.0
|
108
|
43.2
|
21.6
|
10.8
|
|
Angle of View(H)
|
91.6°
|
54.2°
|
|
Angle of view(V)
|
47.2°
|
32.5°
|
|
Angle of view(O)
|
112.7°
|
66.7°
|
|
Adjustment Range
|
Pan: 0°~360°
|
Tilt: 0° ~ 90°
|
Rotation: 0° ~ 360°
|
|
Shutter
|
Auto/Manual, 1~1/100000s
|
|
Minimum Illumination
|
Colour: 0.05Lux (F2.0, AGC ON)
0Lux with IR on
|
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
|
S/N
|
>52dB
|
|
IR Range
|
Up to 30m (98ft) IR range
|
|
wavelength
|
850nm
|
|
IR On/Off Control
|
Auto/Manual
|
|
Defog
|
Digital Defog
|
|
WDR
|
120dB
|
|
Video
|
|
Video Compression
|
Ultra 265,H.265, H.264, MJPEG
|
|
H.264 code profile
|
Baseline profile, Main Profile, High Profile
|
|
Frame Rate
|
Main Stream:8MP (3840*2160), Max 20fps;
Sub Stream:1080P (1920*1080), Max 30fps;
Third Stream:D1(720*576), Max30fps
|
|
Video Bit Rate
|
128 Kbps~16 Mbps
|
|
9:16 Corridor Mode
|
Supported
|
|
OSD
|
Up to 8 OSDs
|
|
Privacy Mask
|
Up to 8 areas
|
|
ROI
|
Up to 8 areas
|
|
Motion Detection
|
Up to 4 areas
|
|
|
|
White Balance
|
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
|
|
Digital noise reduction
|
2D/3D DNR
|
|
Smart IR
|
Support
|
|
Flip
|
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
|
|
Dewarping
|
Support
|
|
HLC
|
Support
|
|
BLC
|
Support
|
|
Network
|
|
Protocols
|
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL,QoS
|
|
Compatible Integration
|
ONVIF(Profile S, Profile T), API
|
|
Client
|
EZStation
EZView
EZLive
|
|
Web Browser
|
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
|
|
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
|
|
Interface
|
|
Network
|
1 RJ45 10M/100M Base-TX Ethernet
|
|
Certifications
|
|
Certifications
|
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
|
|
General
|
|
Power
|
DC 12V±25%, PoE (IEEE 802.3af)
|
|
Power consumption: Max 8W
|
|
Dimensions (L × W × H)
|
191.3×72.6×70.9mm (7.5”×2.9”×2.8”)
|
|
Net Weight
|
0.5kg (1.1lb)
|
|
Material
|
Metal
|
|
Working Environment
|
-30℃ ~ 60℃ (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
|
Strorage Environment
|
-30℃ ~ 60℃ (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
|
surge protection
|
2KV
|
|
Ingress Protection
|
IP67
|
|
|
|
