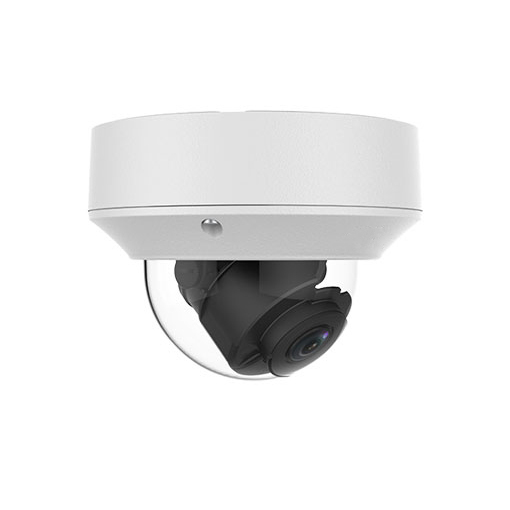

| 4K WDR VF Vandal-resistant IR Dome Network Camera |
| IPC3238ER3-DVZ |
|
|
1/2.5" 8MP, progressive scan CMOS
3840×2160 resolution, 30fps
Smart IR, up to 30m IR distance
H.265, ONVIF
DC12V, PoE. Wide voltage range of ±25%
IP67
|
|
|
|
|
|
Optics
Day/night functionality
Smart IR, up to 30m (98ft) IR distance
Up to 120dB Optical WDR (Wide Dynamic Range)
2D/3D DNR (Digital Noise Reduction)
Compression
Ultra 265, H.265, H.264, MJPEG
Triple streams
ROI (Region of Interest)
9:16 corridor mode
Customized OSD
Network
ONVIF Conformance
Structure
Wide temperature range: -40°C ~ 60°C (-40°F ~ 140°F)
Wide voltage range of ±25%
IK10 vandal resistant
IP67
3-Axis
|
|
|
IPC3238ER3-DVZ
|
|
Camera
|
|
Sensor
|
1/2.5", 8.0 megapixel, progressive scan, CMOS
|
|
Lens
|
2.8 ~ 12mm@F1.6
|
|
DORI Distance
|
Lens (mm)
|
Detect (m)
|
Observe (m)
|
Recognize (m)
|
Identify (m)
|
|
2.8
|
77.8
|
31.1
|
15.6
|
7.8
|
|
12
|
333.3
|
133.3
|
66.7
|
33.3
|
|
Angle of View (H)
|
79.6° ~ 34.9°
|
|
Angle of View (V)
|
64° ~ 16.6°
|
|
Angle of View (O)
|
103.5° ~ 42.9°
|
|
Adjustment angle
|
Pan: 0° ~ 360°
|
Tilt: 0° ~ 80°
|
Rotate: 0° ~ 360°
|
|
Shutter
|
Auto/Manual, 1 ~ 1/100000s
|
Minimum
Illumination
|
Colour: 0.02Lux (F1.6, AGC ON)
0Lux with IR
|
|
IR Range
|
Smart-IR, up to 30m (98ft) IR range
|
|
wavelength
|
850nm
|
|
IR On/Off Control
|
Auto/Manual
|
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
|
S/N
|
>55dB
|
|
WDR
|
120dB
|
|
Video
|
|
Video Compression
|
Ultra 265, H.265, H.264, MJPEG
|
|
H.264 code profile
|
Baseline profile, Main Profile, High Profile
|
|
Frame Rate
|
Main Stream: 8MP (3840*2160), Max 30fps; 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
|
|
Video Bit Rate
|
128 Kbps~16 Mbps
|
|
9:16 Corridor Mode
|
Supported
|
|
OSD
|
Up to 8 OSDs
|
|
Privacy Mask
|
Up to 8 areas
|
|
ROI
|
Up to 8 areas
|
|
Motion Detection
|
Up to 4 areas
|
|
|
|
White Balance
|
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
|
|
Digital noise reduction
|
2D/3D DNR
|
|
Smart IR
|
Support
|
|
Flip
|
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
|
|
Dewarping
|
N/A
|
|
HLC
|
Support
|
|
BLC
|
Support
|
|
Audio
|
|
Audio Compression
|
G.711
|
|
Two-way audio
|
Supported
|
|
Suppression
|
Supported
|
|
Sampling Rate
|
8KHZ
|
|
Storage
|
|
Edge Storage
|
Micro SD, up to 256GB
|
|
Network Storage
|
ANR, NAS(NFS)
|
|
Network
|
|
Protocols
|
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
|
|
Compatible Integration
|
ONVIF (Profile S, Profile G, Profile T), API
|
|
Client
|
EZStation
EZView
EZLive
|
|
Web Browser
|
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
|
|
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
|
|
Interface
|
|
Audio I/O
|
Audio cable
|
|
Input: impedance 35kΩ; amplitude 2V [p-p]
|
|
Output: impedance 600Ω; amplitude 2V [p-p]
|
|
Alarm I/O
|
1/1
|
|
Network
|
1 RJ45, 10M/100M Base-TX Ethernet
|
|
Video Output
|
1 BNC, impedance 75Ω; amplitude 1V [p-p]
|
|
Power Output
|
DC 12V Power Output With PoE
|
|
Certifications
|
|
Certifications
|
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
|
|
General
|
|
Power
|
DC 12V±25%, PoE (IEEE 802.3af)
|
|
Power consumption: Max 8.7W
|
|
Dimensions (Ø x H)
|
Φ148 x 111.3mm (Ø5.8” x 4.4”)
|
|
Net Weight
|
0.92kg (2.0lb)
|
|
Material
|
Metal + Plastic
|
|
Working Environment
|
-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
|
Strorage Environment
|
-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
|
surge protection
|
6KV
|
|
Ingress Protection
|
IP67
|
|
Vandal Resistant
|
IK10
|
|
Reset Button
|
Supported
|
|
|
|
|
|
| |
|
