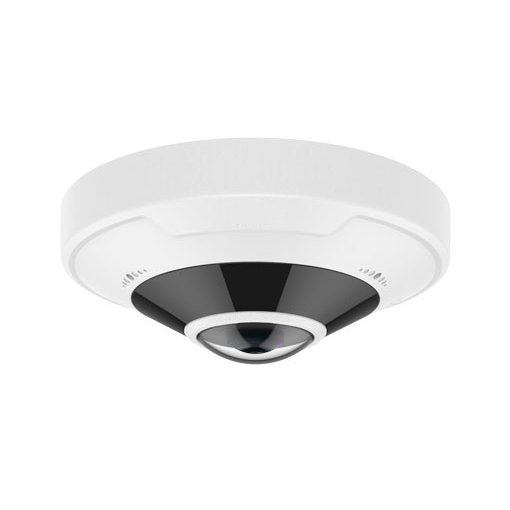

| 4K Ultra HD Vandal-resistant Fisheye Fixed Dome Camera |
| IPC868ER-VF18-B |
|
|
1/1.7",progressive scan,CMOS
4K, Max. 4000 * 3000 resolution
Fisheye, panoramic and PTZ view
Smart IR, up to 10m IR distance
Built-in Mic,Built-in Speaker
2D/3D DNR, ROI, ONVIF
|
|
|
|
|
|
Optics
Ultra wide angle lens, 360° panoramic image
Embedded infrared light, 360° fill-in light, up to 10m (33ft) IR distance
2D/3D DNR (Digital Noise Reduction)
Compression
Max 4000*3000 resolution
Ultra265, H.265, H.264, MJPEG
Built-in microphone & speaker, two-way talk supported
ROI(Region of Interest)
Distortion correction supported
Network
ONVIF Conformance
Structure
Support PoE power supply
Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
Wide voltage range of ±25%
IK10
IP66
|
|
|
IPC868ER-VF18-B
|
|
Camera
|
|
Image sensor
|
1/1.7", 12.0 megapixel, progressive scan, CMOS
|
|
Lens
|
1.8mm@F2.4
|
|
DORI Distance
|
Lens (mm)
|
Detect (m)
|
Observe (m)
|
Recognize (m)
|
Identify (m)
|
|
1.8
|
43.8
|
17.5
|
8.8
|
4.4
|
|
Angle of View
|
360°
|
|
Shutter
|
Auto/Manual, shutter time: 1 ~ 1/100000s
|
|
Minimum Illumination
|
Colour: 0.05Lux (F2.4, AGC ON)
0Lux with IR
|
|
Day / Night
|
IR-cut filter for day & night function
|
|
S/N Ratio
|
>52dB
|
|
IR Range
|
Up to 10m (33ft)
|
|
wavelength
|
850nm
|
|
IR On/Off Control
|
Auto/Manual
|
|
Defog
|
Digital Defog
|
|
WDR
|
DWDR
|
|
Video
|
|
Compression
|
Ultra265, H.265, H.264, MJPEG
|
|
H.264 code profile
|
Baseline profile, Main Profile, High Profile
|
|
Fisheye Frame Rate
|
Main Stream: 15fps (4000*3000, 3000*3000); 25fps (2560*2560);
Sub Stream: 15fps (2000*1500, 2000*2000); 25fps (2000*2000);
Third Stream: 15fps (720*576, 320*288)
|
|
Panorama
|
25fps (3000*2000);
15fps (4000*3000, 3000*2000, 3000*1500)
|
|
Frame Rate PTZ
|
15fps (1920*1080)
|
|
Video Bit Rate
|
128 Kbps~16 Mbps
|
|
ROI
|
Up to 8 areas
|
|
OSD
|
Up to 8 OSDs
|
|
Privacy Mask
|
Up to 8 areas
|
|
Motion Detection
|
Up to 4 areas
|
|
|
|
White Balance
|
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
|
|
Digital noise reduction
|
2D/3D DNR
|
|
Smart IR
|
Support
|
|
Flip
|
Normal/Flip Vertical/ Flip Horizontal/180°
|
|
Dewarping
|
N/A
|
|
HLC
|
N/A
|
|
BLC
|
Support
|
|
Audio
|
|
Audio Compression
|
G.711
|
|
Two-way audio
|
Supported
|
|
Suppression
|
Supported
|
|
Sampling Rate
|
8KHZ
|
|
Storage
|
|
Edge Storage
|
Micro SD, up to 256GB
|
|
Network Storage
|
ANR, NAS(NFS)
|
|
Network
|
|
Protocols
|
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
|
|
Compatible Integration
|
ONVIF (Profile S, Profile G, Profile T), API
|
|
Client
|
EZStation
EZView
EZLive
|
|
Web Browser
|
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
|
|
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
|
|
Live View Display
|
|
Mount Type
|
Support table, wall, and ceiling
|
|
Display Mode
|
Support 10 display modes in total (including display modes of mount types and decoding modes):
Display Mode: Original Image, Fisheye+4PTZ, Panoramic
Preview Mode: Original Image, 360° Panoramic+1PTZ, 180° Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360° Panoramic+6PTZ, Fisheye+8PTZ
|
|
Interface
|
|
Audio I/O
|
Audio interface
|
|
Input: impedance 35kΩ; amplitude 2V [p-p]
|
|
Output: impedance 600Ω; amplitude 2V [p-p]
|
|
Alarm I/O
|
2/1
|
|
Multiple Alarm linkage editable
|
|
Built-in Mic
|
Supported
|
|
Built-in Speaker
|
Supported
|
|
Serial
|
1 channel RS485 interface
|
|
Network
|
1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet
|
|
Video Output
|
1 BNC, impedance 75Ω; amplitude 1V [p-p]
|
|
Certifications
|
|
Certifications
|
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
|
|
General
|
|
Power
|
DC 12V±25%, PoE (IEEE 802.3af)
|
|
Power consumption: Max 11.7W
|
|
Dimensions (Ø x H)
|
Φ149 x 55mm (Φ5.87” x 2.17”)
|
|
Net Weight
|
0.5kg (1.1lb)
|
|
Material
|
Metal + Plastic
|
|
Working Environment
|
-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH
|
|
Strorage Environment
|
-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH
|
|
surge protection
|
6kv
|
|
Ingress Protection
|
IP66
|
|
Vandal Resistant
|
IK10
|
|
Reset Button
|
Supported
|
|
|
|
|
|
| |
|
