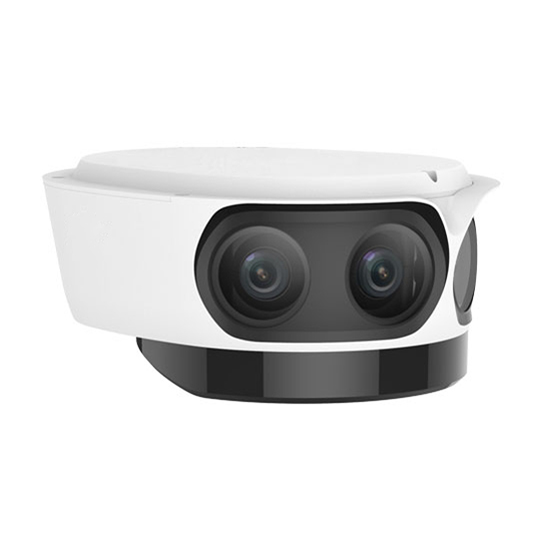

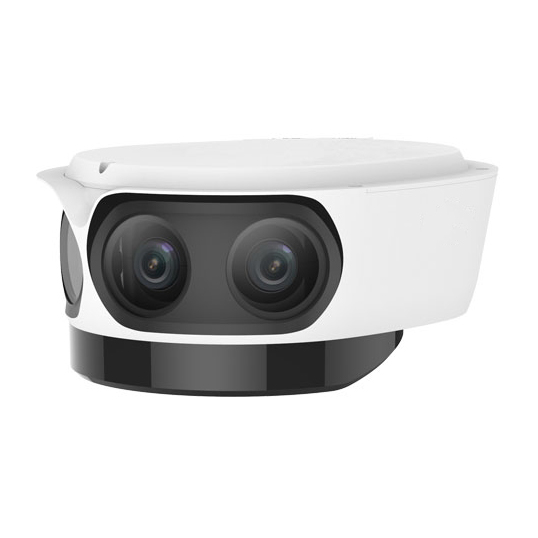

| 4K Starlight OmniView Network Camera |
| IPC8542ER5-DUG |
|
|
1/1.8" progressive scan CMOS
Up to 4096×1800 resolution,30fps
180°Horizontal viewing angle
4×4.2mm lens
Ultra 265,H.265
Smart IR, up to 50m IR distance
|
|
|
|
|
|
Optics
Fifth-generation infrared technology, up to 50m (164ft) IR distance
Starlight illumination
IR anti-reflection window to increase the infrared transmittance
Smart IR
2D/3D DNR (Digital Noise Reduction)
120dB true WDR
Support a horizontal viewing angle of 180°
Compression
Ultra H.265,H.265, H.264, MJPEG
Triple streams
Customized OSD
4096×1800@30fps supported
Network
ONVIF Conformance
Structure
Intelligent temperature control technology
Wide temperature range: -40°C to 70°C (-40°F to 158°F)
Wide voltage range of ±25%
More effective heat dissipation system
IP67
|
|
|
IPC8542ER5-DUG
|
|
Camera
|
|
Sensor
|
1/1.8" progressive scan, 2.0 megapixel, CMOS
|
|
Lens
|
4×4.2mm lens
|
|
DORI Distance
|
Lens
|
Detect(m)
|
Observe(m)
|
Recognize(m)
|
Identify(m)
|
|
4.2mm
|
50.4 (165.4ft)
|
20.2(66.3ft)
|
10.1(33.1ft)
|
5.0(16.4ft)
|
|
Angle of View (H)
|
180°
|
|
Angle of View (V)
|
80°
|
|
Angle of View (O)
|
221.4°
|
|
Adjustment angle
|
Pan: -90°~90°
|
Tilt: -45°~60°
|
|
Shutter
|
Auto/Manual, shutter time: 1 s ~ 1/100000 s
|
|
Minimum Illumination
|
Colour: 0.002lux (F1.8,AGC ON)
0lux with IR
|
|
Iris
|
F1.8
|
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
|
S/N
|
>55 dB
|
|
IR Range
|
UP to 50m (164ft)
|
|
Defog
|
Digital Defog
|
|
WDR
|
120dB
|
|
Video
|
|
Video Compression
|
Ultra H.265,H.265, H.264, MJPEG
|
|
Frame Rate
|
Main Stream: 4096×1800:Max. 30 fps;
Sub Stream: 1920×832:Max. 30 fps;
Third Stream: 1280×560: Max. 30 fps
|
|
HLC
|
Supported
|
|
BLC
|
Supported
|
|
OSD
|
Up to 8 OSDs
|
|
Privacy Mask
|
Up to 8 areas
|
|
ROI
|
Up to 8 areas
|
|
Smart
|
|
General Function
|
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
|
|
Audio
|
|
Audio Compression
|
G.711
|
|
Two-way Audio
|
Supported
|
|
Suppression
|
Supported
|
|
Sampling Rate
|
8KHz
|
|
Storage
|
|
Edge Storage
|
Micro SD, up to 256 GB
|
|
Network Storage
|
ANR
|
|
Network
|
|
Protocols
|
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP,QoS
|
|
Compatible Integration
|
ONVIF (Profile S, Profile G, Profile T), API
|
|
Interface
|
|
Audio I/O
|
1 Input: impedance 35 kΩ; amplitude 2 V [p-p]
|
|
1 Output: impedance 600 Ω; amplitude 2 V [p-p]
|
|
Alarm I/O
|
2/1
|
|
Network
|
1*100M/1000M Base-FX SFP + 2*10M/100M/1000M Base-TX Ethernet
|
|
General
|
|
Power
|
AC24V±25%/DC24V support 18V-48V
|
|
Power consumption: 45W MAX
|
|
Dimensions
|
259mmx211mmx115mm (10.2”×8.3”×4.5”)
|
|
Weight
|
2.4kg(5.3lb)
|
|
Working Environment
|
–40°C ~ +70°C (-40°F ~ 158°F), Humidity:10%~95% RH(non-condensing)
|
|
Ingress Protection
|
IP67
|
|
Reset Button
|
Supported
|
|
|
|
|
|
| |
|
